High Level Materials Grain Corn Wheat Lifting 100t/H Bucket Elevator

Product Description

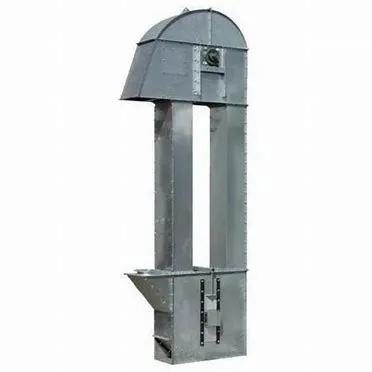

The FTSILO TDTG series bucket elevator is independently developed by FTSILO and is a fixed installation mainly used for the vertical continuous conveying of powdery materials or granular materials.The equipment is of straightforward structure, compact design,good sealing performance, easy installation and maintenance, allowing positive and reverse material feeding, as well as flexible process configuration and layout. The installation height is optional, but the maximum height elevator not beyond 40m.
Application of TDTG series Vertical Silo Sand Seed Grain Bucket Elevator Paddy Rice Elevator for Grain handling
Bucket elevators can handle a variety of materials, and therefore are used in many different industries and applications, though generally, they are not suited for wet, sticky materials, or materials that are stringy or tend to mat or agglomerate. They are frequently found in power plants, fertilizer plants, pulp & paper mills, and steel production facilities.
Main technical parameters

Model	Head wheel diameter	Convey volumn	Belt speed	Bucket capacity
TDTG30/16	300	15-20	2.2-3.3	1.05
TDTG50/19	500	30-40	2.2-3.3	1.6
TDTG50/23	500	40-50	2.2-3.3	2.27
TDTG50/28	500	50-60	2.2-3.3	2.05
TDTG60/23	600	70-80	2.2-3.3	1.9
TDTG60/28	600	90-100	2.6-3.6	2.5
TDTG60/33	600	110-150	2.6-3.6	5.5
TDTG60/41	600	160-200	2.6-3.3	8.4

---
