4-Ton Lifting and Aerial Work Crane with 18-Meter Height on Shaanxi 4*2 Chassis and Transportation Capability

Product Description

Product Description

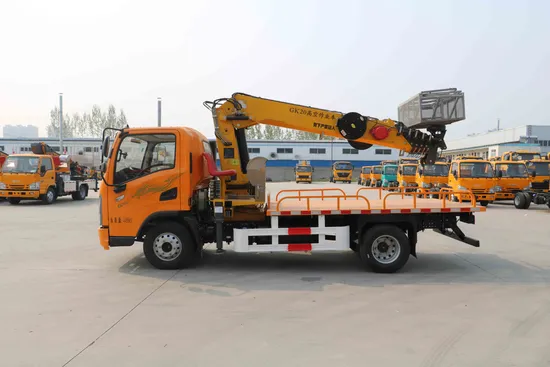

The GK20 is a key piece of equipment designed for working at height, providing a stable and safe working platform for aerial tasks such as building construction, maintenance, and installation. Built on the robust and reliable Shaanxi Automobile Delong chassis, it combines durability with exceptional performance, ensuring safe and efficient operations in challenging environments.
This equipment offers flexibility and accessibility, making aerial tasks more efficient while reducing risks during operations. Additionally, aerial work trucks like the GK20 are widely used in various applications, including cleaning, painting, billboard installation, and emergency rescue. With a wide range of configurations and features, the GK20 meets the diverse needs of different industries and specific job requirements, providing a dependable solution for aerial work.
Technical Parameters

Aerial Work Performance Parameters		Lifting Performance Parameters
Maximum operating height	19m	Maximum lifting capacity	4000kg
Maximum working radius	14m	main winch	4000kg
Platform rated load	200kg	crane arm	6-section arm
Boom slewing angle	360°	Maximum lifting height	17m
Platform size	1500mm*700mm*1100mm	rotary structure	360-degree omnidirectional rotation.
Platform rotation range	360°
operating system	Remote control
Hydraulic system	Electro-hydraulic proportional valve, enabling stepless speed regulation.
safety device	Limit protection with a backup traction steel wire.
Big arm	Six-section boom with five sections extending simultaneously.

Benefits & features
1.The whole vehicle is not overweight and adopts Baosteel 960 high strength plate :. Provide high strength and toughness, lightweight design, good corrosion resistance and welding performance, as well as environmentally friendly and economical comprehensive advantages for aerial work trucks.
2.Double-section outriggers with longitudinal and transverse spans of 6000mm/5800mm: enhance the stability, carrying capacity, operational safety and flexibility of the aerial work truck, optimally adapting to the needs of efficient operations in complex environments.
3.Multi-section arm design (6-section arm, 5-section synchronous telescopic), lifting height 19m: Combined with its compact storage, height flexibility and stability, easy operation and high efficiency features, it greatly extends the operating range and meets a wide range of aerial work requirements
4.Double lifting cylinder design: It significantly improves the stability, lifting force, control precision and life of the equipment, and at the same time enhances the safety and reliability of the operation by improving the load distribution and increasing redundancy
5.1.6 metre cradle with small platform for loading:Significantly improves operational efficiency and safety by providing ample workspace and easy access to materials, while enhancing ease of operation and the ability to adapt to a wide range of operational requirements.
6.box body frame:Provide high structural strength, good protection performance, high space utilisation, versatility, enhanced security and privacy, as well as a wide range of application scenarios and improve the aesthetics of the vehicle's comprehensive advantages, to meet diversified work requirements and transport conditions
Detailed Photos

Our Factory
Baoliwei Construction Machinery Sales Co., Ltd. is a high-tech enterprise specialising in the research, development, production and sales of machinery and equipment. The company has more than 100 million yuan of strong fixed assets and more than 100 high-quality employees.
The company's main products include truck cranes, truck-mounted cranes, anisotropic cranes, aerial work trucks and other series of machinery and equipment. With their excellent performance and reliable quality, these products are widely used in building construction, transport, urban construction, energy development and many other fields.
FAQ
1: What payment terms are acceptable?
For payment terms, L/C, T/T, D/A, D/P, Western Union (acceptable)

3. How about the MOQ?
The minimum order quantity is 1 piece

---
