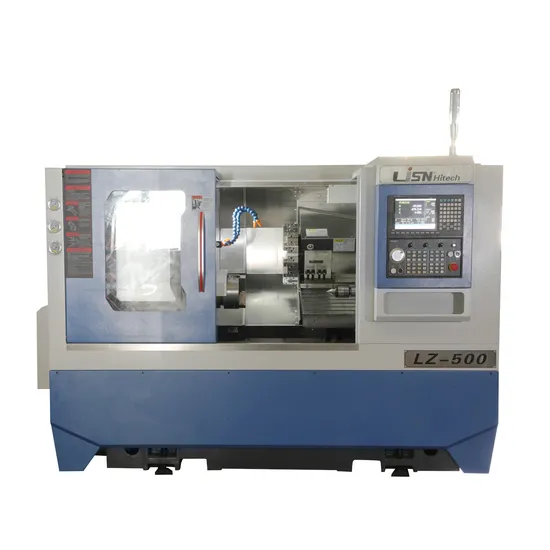

Slant Bed Turning and Milling 12 Stations Horizontal Metal CNC Lathe Machine with Y Axis and Hydraulic Lathe

Product Description

Product Description
1. Discover the impressive capabilities of our two-coordinate (longitudinal Z, horizontal X) continuous control horizontal CNC lathe, a paragon of engineering prowess. This machine is designed with superior processing performance for both shaft and disc components. Ideal for large-scale production, it upholds an unparalleled standard of precision and dimensional consistency. Designed to meet the rigorous demands of industries such as aerospace, automotive, mold making, and instrumentation, it excels in high-volume, high-precision, and cost-effective machining. Experience a new era of efficiency and quality with this high-performance machine tool, perfectly suited for modern mechanical processing industries.
2. Our machine tool integrates mechanical, electrical, and hydraulic systems into a well-conceived design, ensuring a harmonious blend of form and function. It boasts of high speed, exceptional precision, and remarkable rigidity, delivering unmatched efficiency and reliability. Each component is meticulously selected through a competitive bidding process to feature products from the industry's most renowned manufacturers, guaranteeing precision and reliability. The fully enclosed protective structure not only enhances operational safety but also aligns with ergonomic principles, ensuring ease of use and minimizing environmental impact.
Main Features
Slant bed with a 45-degree angle, Spindle bore diameter of 86mm, Max. swing over bed: 560mm, Max. Turning length: 500mm, CNC controller system, main spindle servo motor rated at 11kw, Spindle unit speed reaching up to 3500rpm, Featuring Taiwan linear guideway, 10-inch hollow type hydraulic 3-jaw chuck, 8-station servo turret, One-piece bed, Hydraulic tailstock, Chip conveyor equipped with cart, Automatic cooling and lubrication system, Integrated work light, Alarm light Detailed Photos

Product Parameters

Main Technical Parameters
ITEM	MODELS	LZ-0615Y/400	LZ-0812Y/550
Spindle Nose	-	A2-5	A2-6
Diameter of Spindle Through Hole	mm	56	66
Bar Diameter	mm	46	52
Max. Swing Over Bed	mm	420	550
Max. Turning Diameter	mm	290	500
Max. Turning Length	mm	350	500
Spindle Speed (C Axis)	rpm	0-4500	0-4200
Milling Spindle Speed	rpm	0-4500	0-4500
X/Y/Z Axis Rapid Moving Speed	m/min	25	25
X/Y/Z Axis Repeated Positioning Accuracy	mm	0.003	0.003
X/Y/Z Axis Positioning Accuracy	mm	0.005	0.005
X Travel	mm	450	640
Y Travel	mm	±35	±45
Z Travel	mm	390	540
Tailstock Sleeve Taper	-	Morse4#	Morse 5#
Spindle Motor	kw(um)	7.5KW/6000rpm	11kw / 6000rpm
X/Y/Z Motor	kw(um)	2.4/11.5um	2.4 / 11.5um
Water Tank Capacity	L	125	135
Machine Weight	kg	3600	4000
Machine Dimenssion	mm	2420x1800x800	2750x1950x2230

Company Profile
Lizhun Machinery Co., Ltd. stands at the forefront of innovation, dedicated to the development and production of cutting-edge CNC machining centers and CNC lathes. Embodying a spirit of innovation and excellence, we have provided top-tier machines characterized by exceptional performance, precision, and quality to esteemed enterprises worldwide. Looking ahead, Lizhun will continue to champion innovation and excellence, providing unwavering support to the processing industry. We are committed to delivering outstanding processing machines tailored for the dynamic demands of 5G, aviation, automotive, and other vital sectors.
Located in the vibrant city of Dongguan, Guangdong province, Lizhun Machinery Co., Ltd. boasts a product exhibition hall in the picturesque Songshan Lake area, offering an elegant working environment. Our state-of-the-art factory in Dalingshan is equipped with comprehensive facilities and staffed by seasoned experts. With extensive experience in innovation, development, assembly, and production, our team ensures each machine that rolls out reflects unmatched quality and stellar performance. when it leaves the factory.
Spanning a vast area, our factory is equipped with multiple production lines to sustain robust production and supply capabilities. This ensures that our customers receive their machines within the promised timeframe, circumventing the challenges associated with production shortfalls.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at

---
