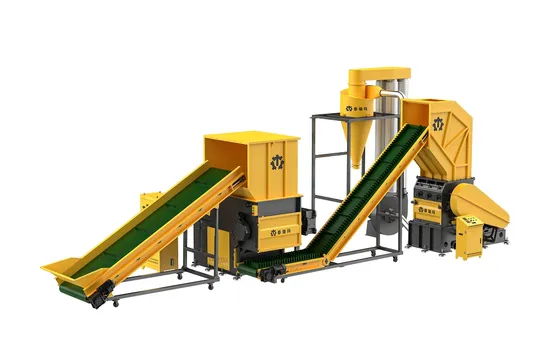

Plastic Scrap Recycling Crushing Production Line

Product Description

Waste Plastic 500-2000 Kg/Hour PET Bottle Crusher Shredder Recycling Machine Line Product Parameters

Plastic waste recycling machines
Raw material	Film, woven bags, pipes, profiles, waste material of injection machine, plastic bottle,pallet, etc all kinds of plastics
Final product & capacity	1000-2500kg/h, depends on condition of client's material.
Electric current	3×380V, 50Hz; (can be customize as per requirement)
Description of final product	Particle size:>20mm (can be designed as per special requirement)

HDZ600 Technical Specification
Rotor diameter(mm)	Φ300
Rotor width (mm)	600
Main shaft speed (rpm)	73
Rotor knives (pcs)	2
Stator knives (pcs)	30/45
Motor power (kw)	22
Hydraulic power (kw)	5.5
Screen holes diameter (mm)	>20
Machine dimensions(mm)	1780*1400*1900
Weight (kg)	2800

HFS1200/800 Technical Specification
Rotor diameter(mm)	φ800
Rotor width(mm)	1200
Main shaft speed(rpm)	420
Rotor knives(pcs)	2/3
Stator knives(pcs)	5/7/9
Motor power(kw)	110/132
Hydraulic power(kw)	3
Chamber size(mm)	1200x1100
Screen holes diameter(mm)	>10
Machine dimensions(L*W*H)(mm)	2300x2200x3720
Weight(kg)	8000

Product Feature
ROTOR:
The knife adopts V-shaped arrangement, the blade has a variety of different components and materials to choose from, and the Angle can be changed for many times.
Adjustable tool: By adjusting the gap between the tools, the material discharge effect can be controlled. Can choose surface surfacing welding wear-resistant materials, suitable for processing some hard, wear larger materials, effectively ensure the long-term stable use of the tool roll.
Reducer:
The reducer adopts a well-known brand gear box to increase the safety factor and ensure the long-term stable operation of the equipment.
The rubber shock absorber attenuates the vibration generated during the shredding process, absorbs the impact, makes it stable shredding, and protects the safety of the reducer and its power system.
SCREEN:
According to different needs, different aperture screen can be replaced. The replacement screen adopts hydraulic drive to better solve the shortage of manpower and the security risks brought by the replacement screen.
HYDRAULIC PRESSURE:
Double cylinder balance push material, adjustable speed hydraulic system, according to the nature of the material can freely adjust the push and return speed. Equipped with wind cooling device to ensure the oil temperature of the hydraulic system to meet the continuous work needs.
Product Application
Company Profile
Zhejiang Haigong Machinery Co., Ltd. is located in the beautiful coastal city of Taizhou, the plant covers an area of more than 60,000 square meters, is a domestic R & D, manufacturing, sales and after-sales service in one, with innovative environmental protection equipment technology enterprises. Haigong Group adheres to the core concept of "people-oriented, innovation-driven" and adheres to the spirit of "sincerity, hard work, innovation and transcendence". The company introduces world-class production equipment, chooses the best raw materials and accessories around the world, and signs parts supply agreements with renowned international partners such as Mitsubishi, Omron, Delta, etc., to protect the "zero defect" production from the source, and the whole process of quality management, products throughout the country more than 30 provinces and cities, and exported to the United States, Australia, Southeast Asia and other countries.
Our Terimar product range includes: shredders, single-axis shredders, two-axis shredders, two-roll shredders, customized full-line systems. Our Terima crusher series is committed to providing customers with better industrial pollution prevention solutions, is committed to promoting the sustainable development of social green environmental protection, and is committed to contributing to the cause of earth environmental protection

Exhibition

FAQ
Q:What are the applications?
A:HSF series mill is designed to meet the recycling needs of the industry, suitable for the treatment of materials are: all kinds of electronic wire waste, film, woven bags, waste paper, wood, nylon, ABS, PC and other materials.
Q:How about the service?
A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods.
Q:What information shall I provide when I request for quotation?
A:Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
Q:Are you trading company or manufacturer?
A:Our company is a manufacturer, we specialize in the manufacture of waste solid waste recycling equipment for the recycling industry. Address: No. 199chuangye Avenue, Jiangnan Street,Linhai City, Zhejiang Province,China. Postcode :317000
Q:What kind of products do you offer?
A:Our products mainly have five series, shredder, single shaft shredding machine, double shaft shredding machine, double roller shredding machine, customized whole line equipment.
Q:Do you support product customization?
A:Yes, we not only provide personal customized services, but also provide solutions for our customers.

---
