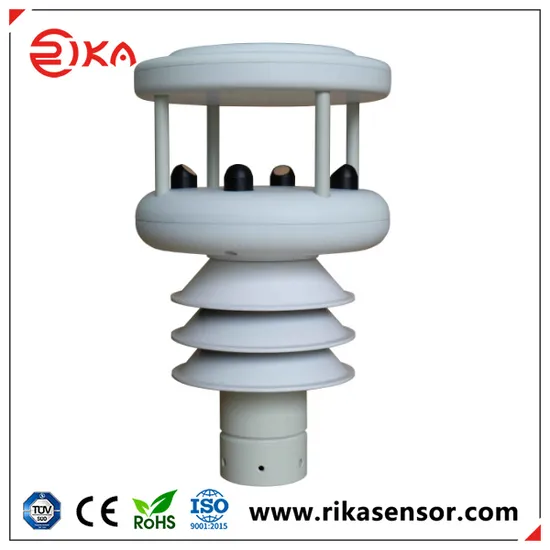

Rk900-10 Ultrasonic Weather Station with Wind/Temp/ Humidity/ Pressure/ Rain/ Solar Radiation/Dust Sensor

Product Description

RK900-10 Ultrasonic Weather Station with Wind/Temp/ Humidity/ Pressure/ Rain/ Solar Radiation/Dust Sensor RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity,air pressure,wind speed, wind direction, solar radiation,Illuminance/UV,dust concentration and precipitation.Temperature, humidity and air pressure sensor is placed within the radiation shield.Wind speed and direction of ultrasonic principle.24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity.Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.
FEATURES
High accuracy,fast response
Easy to install, all-weather measurement
RS485/RS232/SDI-12 output
No moving parts, maintenance free
Built-in heating device to ensure the normal work in cold climate
Use radar measurement of precipitation,accurately reflect the rainfall and start-stop moment
Can be added the electronic compass, GPS and BDS global positioning module

APPLICATIONS
Unattended meteorological monitoring system
Mobile meteorological monitoring system
Electric power safety monitoring
Solar or wind power generation
Port and navigation of the ship
Scenic region
Meteorological science research
TECHNICAL SPECIFICATION

Measure item		Principle	Range	Resolution	Accuracy
Wind speed		Ultrasonic	0-60m/s	0.01m/s	±3%
Wind direction		Ultrasonic	0-360º	1°	±3°
Atmospheric temperature		MEMS	-40-+80ºC	0.1ºC	±0.3ºC
Atmospheric humidity		MEMS	0-100%RH	0.1%RH	±3%
Atmospheric pressure		MEMS	150-1100hPa	0.1hpa	±1hPa
Precipitation(Rain/Hail/Snow)		Radar	0-4mm/min	0.01mm	±0.4mm
Solar radiation		Silicon-cell	0-1750W/m2	1W/m2	±5%
Illuminance	optional	Silicon-cell	0-20klux	1lux	±5%
UV		Silicon-cell	100-200kμW/cm2	1μW/cm2	±10%
Dust concentration(PM2.5,PM10)		Photoelectric scattering	0-2000μg/m3	1μg/m3	±4%
Supply		12-24VDC
Output		RS485,RS232,SDI-12
Communication Protocol		Modbus-rtu(default),NMEA-0183,SDI-12
Data update cycle		1s(default),other optional
Power consumption		<2W,auto-heating power: 6W
Operating temperature		-40-+80ºC
EMC		EN61000-6-3 , EN61000-3-3 EN61000-3-2 , EN61000-6-1
IP Rating		IP66
Main material		ABS+ Aluminum alloy
