High Speed Wire Cutting EDM CNC Wire Multi Cut Machine Dk77100

Product Description

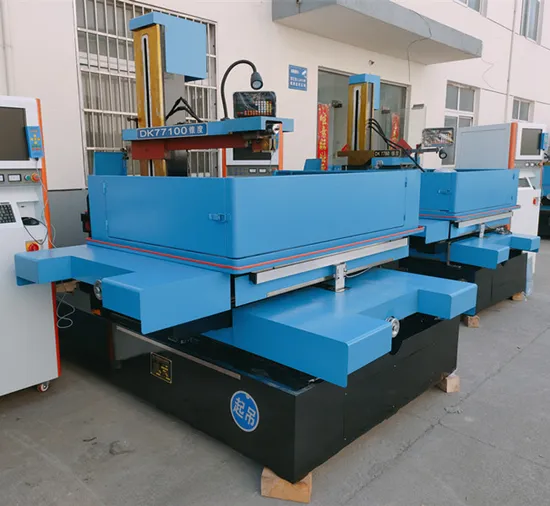

High Speed Moly Wire Cut EDM CNC Machine Dk77100
The WEDM is composed of main machine, electrical control system, software and cooling filter system. The main machine is mainly composed of fuselage, column, wire frame, workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has five axes of X, y, u, V and Z, among which the four axes of X, y, u and V are linked and driven by step without resistance and constant current. The vertical cabinet dqe-ds-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen. Long term normal working conditions of the machine:

Working environment temperature	5~40ºC
relative humidity	≤85%
Working temperature of cooling water	≤30ºC
Power Supply	220V/380V/415V;50Hz/60Hz;One Phase/Three phase

2.technical requirement

S/N	Project	Parameters
1	Model	Dk77100; fast wire
2	Electrical cabinet form	Stepping type of vertical cabinet
3	Guide	V flat guide rail
4	Lead screw form	Ball screw
5	XY motion motor form	Stepper motor
6	Working mode of wire conveying motor	Frequency converter speed regulation 1 ~ 12m / S
7	Machine tool protection	Environmental protection cover
8	Resolution of motion axis	0.001mm
9	Table size	1150X1600mm
10	X. Y axial stroke	1000X1200mm
11	U. V-axis stroke	±35×±35mm
12	Machining taper / machining thickness	±6°/80mm
13	Maximum straight cutting thickness	1100mm(Z-axis electric lifting)
14	control mode	4 axis linkage
15	Maximum load capacity	1500kg
16	Maximum processing current	5A
17	Maximum processing efficiency Cr12, H = 60mm	≥180 mm²/m
18	Surface roughness (straight cutting, H ≤ 40mm)	Ra≤2.5μm
19	Cutting accuracy Cr12, H = 40mm	≤0.015mm
20	Radial runout of wire storage cylinder	≤0.02mm
21	Molybdenum wire diameter range	0.12~0.22mm
22	Wire storage capacity of wire storage cylinder	250m
23	Molybdenum wire loss Cr12, H = 40mm	≤0.02mm /300000mm²,
24	Cutting power supply	High frequency power supply system without resistance
25	operating system	Windows 98/XP(According to the control software)
26	Control system	StandardAUTOCUT
27	communication interface	LAN,RS232,USB
28	Operation function	Drawing or CAD drawing import
29	Working tank volume	55L
30	Working fluid filtration mode	Filter screen filtration
31	Weight of whole machine	6000 kg
32	Overall dimension of main engine	2500x2300x2500mm
33	Cabinet size	730×630×1820mm
34	Rated power of electric appliance	≤ 2.7kW

3.List of attached accessories

S/N	Product name	Specifications	Free delivery
1	scissors	3	1
2	Hexagonal wrench	M4-M10(5)	1
3	Stiff hands	14-17	1
4	Wooden screwdriver	One type, cross type	2
5	Oil gun	Metal shell	1
6	Molybdenum wire calibrator	H80mm	1
7	Top wire wheel		1
8	Working fluid	Water working fluid, Jiarun jr3a	1
9	Electrode wire	Recommended 0.18mm molybdenum wire	500m
10	Guide wheel	Dia.49.5mm	2
11	Bearing	625ZZ	8
12	Conductive block	12mm×12mm	2
13	Reversing switch	NPN LJ186A3-8-Z BX	2
14	Silk conveyor belt	110	1

---
