U/FTP Cat 6A Bc PVC Cm Twisted Pair Installation Cable

US$13.00-55.00 100 Boxes (MOQ)

Basic Info.

Model NO.
U/FTP CAT 6A
Cover Material
PVC
Type
Cat 6
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
Cat5
Brand
Fuu
Transport Package
305m
Specification
0.5mm conductor
Trademark
FUU
Origin
China
HS Code
8544200000
Production Capacity
5000km/Month

Product Description

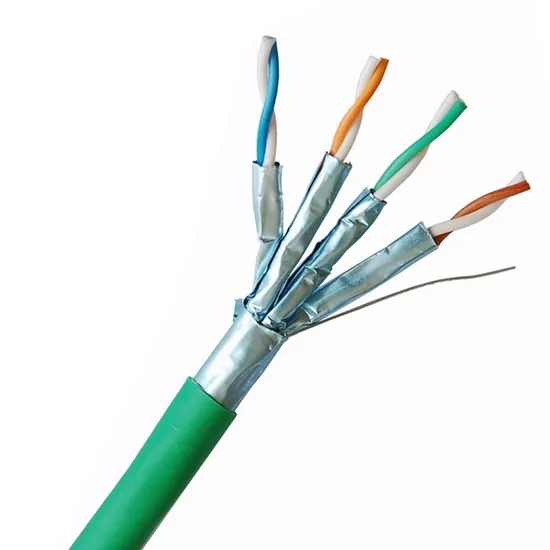

U/FTP CAT 6A Twisted Pair Installation Cable
LAN CABLE

Construction
Conductor:
 23 AWG Solid Bare Copper
Pairs:
 4 Pairs
Insulation:
 1.35 mm Skin-Foam-Skin
Insulation Colors:
 Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Overall Shield
 Individual Pair shield,Al/PET Foil,Foil face out
Drain Wire
 0.40±0.005mm TC
Rip Cord:
 Cotton
Out Jacket:
 8.0±0.2 mm PVC CM
Electrical Characteristics
Impedance
 4 - 100MHz 100±15 Ohms
100 - 200MHz 100±22 Ohms
200 - 500MHz 100±32 Ohms
Max.Conductor DC
Resistance 20ºC
 8.7 Ohms/100m
Res. unbalance (%)
 Max. 2.5
Pair to Ground
Capacitance Unbalance
 330 pF/100m
Transfer Impendance
 Max 10 mOhms/m @100Mhz
Installation temp.
 -30 - 50ºC
Operation temp.
 -20 - 75ºC
Cross Section


Application
• Suitable for structured premises cabling.
• For transmission of digital and analogue voice and data signals.
• Especially suitable for all Class EA applications.
• ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).
• Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).
Standard
IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801
Performance Characteristics
Frequency
 RL (Min.)
 Insertion Loss(Max.)
 Propagation Delay (Max.)
 Delay Skew(Max.)
 NEXT (Min.)
 PSNEXT (Min.)
 ELNEXT (Min.)
 PSELNEXT (Min.)
MHz
 dB
 dB/100m
 ns/100m
 ns/100m
 dB
 dB
 dB/100m
 dB/100m
1
 20.0
 2.1
 570.0
 45.0
 74.3
 72.3
 67.8
 64.8
4
 23.0
 3.8
 552.0
 45.0
 65.3
 63.3
 55.8
 52.8
10
 25.0
 6.0
 545.0
 45.0
 59.3
 57.3
 47.8
 44.7
16
 25.0
 7.6
 543.0
 45.0
 56.2
 54.2
 43.7
 40.7
20
 25.0
 8.5
 542.0
 45.0
 54.8
 52.8
 41.8
 38.8
31.25
 25.0
 10.7
 540.0
 45.0
 51.9
 49.9
 37.9
 34.9
62.5
 21.5
 15.4
 539.0
 45.0
 47.4
 45.4
 31.9
 28.9
100
 20.1
 19.8
 538.0
 45.0
 44.3
 42.3
 27.8
 24.8
200
 18.0
 29.0
 537.0
 45.0
 39.8
 37.8
 21.8
 18.8
300
 17.3
 36.4
 536.0
 45.0
 37.1
 35.1
 18.3
 15.3
400
 17.3
 43.0
 536.0
 45.0
 35.3
 33.3
 15.8
 12.8
500
 17.3
 45.3
 536.0
 45.0
 33.8
 31.8
 13.8
 10.8
Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.
Order Informations
Marking
 U/FTP CAT6A 4PR 23AWG PVC CM
XXX (or Per customer's request)
Inner Package
 305m/Spool,305m/Reel (or Per customer's request)
Outer Package
 Color Box, Pallet (or Per customer's request)
Delivery time
 Normally 25 days after received the deposit.
