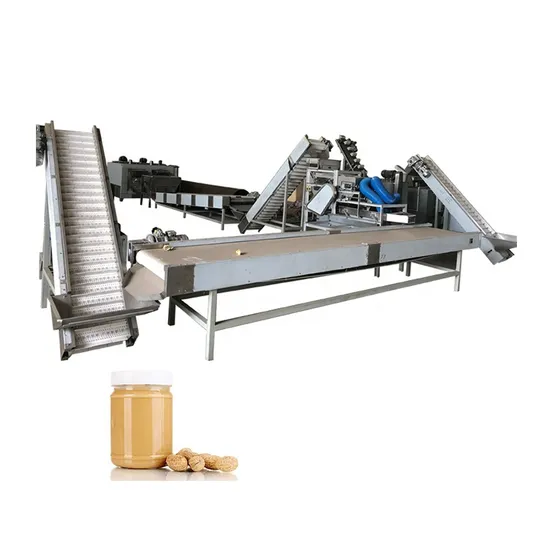

Peanut Sesame Almond Butter Paste Production line Making Machine
This Automatic peanut butter making machine was designed by reference of the foreign technology. Automatic peanut butter making machine is consisted of feed elevator, continuous roaster, conveyor, cooling machine, sorting conveyor, grinding machines, pump, storage slot, cooling machine, mixing machine, vacuum degassing, etc
1.Roasting: Batch roaster's working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells. 2.Peeling: Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical.
3.Primary grinding: Using steel grinder to make the first grinding.
4.Second grinding: Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68°C. Mixing: Make the butter more homogeneous.
5.Cooling: The butter through second grinding should be cooled immediately. The temperature should go down 45°C.
6.Degasser:Take out the air from peanut butter. Storage tank: Settling down in the storage tank till the temperature drop to air temperature. Detailed Photos
Peanut Sesame Almond Butter Paste Production line Making Machine


Product Parameters
Peanut Sesame Almond Butter Paste Production line Making Machine

No.	Name	Power(kw)	Size(mm)
1	Feeding Machine	0.55	700*700*800
2	Hoister	0.75	1000*500*2800
3	Continuous Roaster Machine	24	3000*1200*2600
4	Continuous Cooling Machine	5	3200*800*2400
5	Peeling Machine	0.74	1100*350*1100
6	Storing and Feeding Machine	0.55	700*700*2200
7	Grinding Machine	5.5	900*350*900
8	Paste pump	2.2	1200*300*350
