Basic Info.
Name
Parallel Paper Drum Making Machine
Paper Barrel Thickness:
Normal 3-10mm
Paper Grammage
200-550GSM
Production Speed
~1800PCS/Shift(8hours)
Dimension
3200X2600X1500mm
Size of Jumbo Paper Roll
1200mmx1300mm (Width*Dia.)
Transport Package
Seaworthy Packing
Specification
3200X2600x1500mm
Production Capacity
60 Sets/Year
Product Description
Section One------Machine Description
Video:https://youtu.be/1bOEANtM1ho
1.Introduction:
The machine is used for producing parallel paper barrel(round or square) automatically. It consists of paper stand, gluing device (automatic cycle system with gear pump), paper cutting device, drum winding device, drum inline cutting device, surface/label paper pasting device, drum discharging device. This machine vacuum-absorbs paper on mandrel automatically. The mandrel is retractable/collapsible mandrel which will make drum discharging easily from mandrel. The machine is controlled by Siemens PLC, Touching panel and Delta inverter
2.Technical parameter:
Model: | SANPT250-650 |
Size of jumbo paper roll: | 1200mmx1300mm (Width*Dia.) |
Paper Barrel length: | 1200mm |
Paper barrel inner diameter: | 250-650mm |
Paper barrel thickness: | Normal 3-10mm. |
Paper grammage: | 200-550gsm |
Gluing method: | single side gluing |
Inline cutter: | 3pcs |
Production speed: | 5-7pcs/min |
Power: | 7KW/380V/50HZ/3Phases |
Weight: | ~1500kg |
Dimension: | 3200X2600x1500mm |

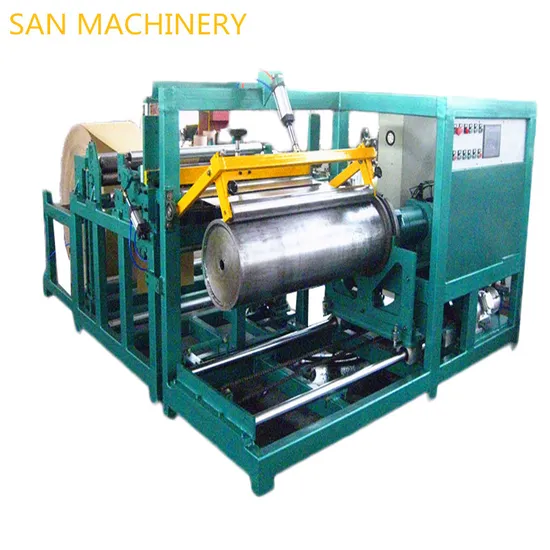

3.Machine Images
Section Two------More Information About Us
1.Packing & Shipping
We testing every machine before shipment.
The machine will be packed and shipped by container.
The machine will be packed by film in standard.
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing.
2.Our Service
Pre-Sales Service
* Inquiry and consulting support.
We provide you with real-time consulting service through mail, WeChat, telephone and other communication methods 24 hours a day
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
3.FAQ
★About Trade Term
Q-----What's the trade term for making business with us?
A----- FOB,CFR,CIF; It's mainly depend on client's requirement;
★About Delivery Time
Q------What's the Delivery time after placing order ?
A------Usually it takes about 30 days after we received your deposit. However, it would depend on our production line schedule(the timing clients place order)and the manufacturing process of the item.
★About Payment Term
Q------What's the Payment Term?
A------ By T/T or L/C.
4.The Photos of Our Exhibition
>>
