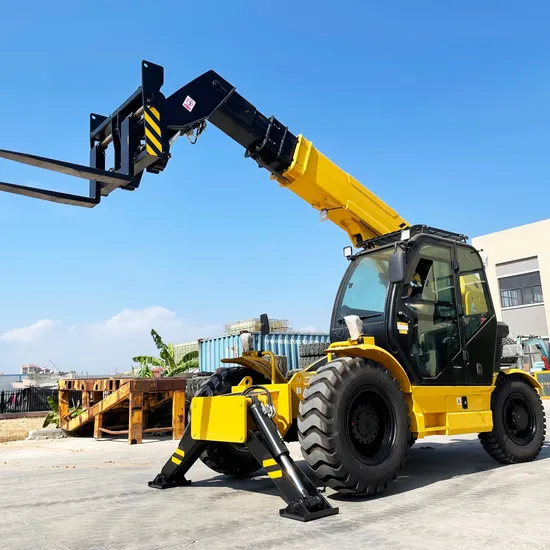

Vift Xc6-4517K 17 M Height 4.5 Ton Telescopic Boom Telehandler Forklift Handler

Product Description

Company Profile
VIFT forklift, founded in 2010, is a Shanghai-based leading manufacturer specializing for handing equipment from product design, production, to after-sales services for material handling equipment suppliers worldwide.We offer a wide range of products to fulfil the individual need of every customer from occasional operations to multi-shift applications in warehouse or distribution centers at high frequency level. At VIFT Forklift, we commit to producing the right truck for each application.
Detailed Photos
Optional Configuration

Main paramenter
Item	XC6-4517K	unit
Gross weight	13500	kg
Engine power	82(USA brand)/74.9(DDE)	KW
Rated load	4500	kg
Maximum lifting height	16700	mm
Maximum forward reach	12600	mm
Effective load at maximum forward reach	490	kg
Center distance of load	600	mm
Luffing angle	-4~73	°
Fork angle	-90~18	°
Maximum traction force	≥70	KN
Gradeability	≥25	°
Maximum travelling speed	36	km/h
Turning radius	≤5000	mm
Breaking distance	≤10 (Initial speed 32±2km/h)	m
Overall length	6960	mm
Overall width	2500	mm
Overall height	2850	mm
Wheelbase	3900	mm
Wheeltread	2060	mm
Fork length	1200	mm

Packaging & Shipping
Certifications
Customer photos
FAQ Q1: How long is the Warranty for VIFT product?
A1: VIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually VIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: VIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, VIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can VIFT provide customized products? OEM products or ODM products?
A4: Yes, VIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What's the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.

---
