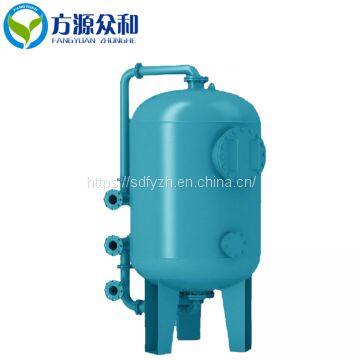

FHGL ACTIVATED CARBON FILTER
The FHGL activated carbon filter is finished through a carbon bed. The activated carbon particles in the carbon bed have many micro pores and large specific surface area, and have strong physical adsorption capacity. The water through the carbon bed and the organic contaminants in the water are effectively adsorbed by activated carbon. In addition, effective adsorption on the surface of activated carbon is achieved. Activated carbon was used to remove low molecular organic compounds, free chlorine and odorous compounds and heavy metal ions in water. Its design flow velocity is 15m/h, backwash strength is 10l/m2s.
Water processing ability (m3/h)
| 2-4
| 5-8
| 10-15
| 25-36
| 36-45
| 45-56
| 56-80
|
Dimension (mm)
| φ516
| φ1016
| φ1516
| φ2020
| φ2524
| φ3024
| φ3224
|
Maximum outer diameter (mm)
| φ710
| φ1400
| φ1900
| φ2450
| φ3000
| φ3550
| φ3900
|
Machine height (mm)
| 2800
| 3000
| 3800
| 4100
| 4720
| 4980
| 5150
|
Working pressure (MPa)
| 0.4
| 0.4
| 0.4
| 0.4
| 0.4
| 0.4
| 0.4
|
Maximum pressure (MPa)
| 0.5
| 0.5
| 0.5
| 0.5
| 0.5
| 0.5
| 0.5
|
Filtration speed (m/h)
| 6-10
| 6-10
| 6-10
| 6-10
| 6-10
| 6-10
| 6-10
|
Water backwash strength (l/s.m2)
| 10-15
| 10-15
| 10-15
| 10-15
| 10-15
| 10-15
| 10-15
|
Gas backwash strength (l/s.m2)
| 15-18
| 15-18
| 15-18
| 15-18
| 15-18
| 15-18
| 15-18
|
Our Services
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Packaging & Shipping
Company Information
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, crescent type tissue paper machine, sewage treatment equipment, such as FHGL Activated Carbon Filter, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The FHGL Activated Carbon Filter we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
With the rapid development of the national economy and the requirement of the sustainable development and harmonious development, environmental protection is playing a more and more important role. China's environmental protection industry is facing unprecedented opportunities for development. To improve the living environment of mankind and write a brilliant chapter of Chinese environmental protection industry, we will make unremitting efforts and have succeeded in carrying out an assignment. Our company warmly welcomes friends and business colleagues all over the world to come and guide us in creating a better future for environmental protection.
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for 20 years' experience
Q2. How to proceed an order for the FHGL Activated Carbon Filter from factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q4. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be finished before the guarantee date.
Q5: Do you offer guarantee for the FHGL Activated Carbon Filter?
A: Yes, under the right condition , we offer different time warranty for our products.
Q6. How to pack the FHGL Activated Carbon Filter?
A: Standard oversea packages or according to customer's requirement will be used.
If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
Q7. How to install the FHGL Activated Carbon Filter after arriving destination?
A: We will provide detailed drawings to you. If it is necessary, we will send technical engineers to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
>>
