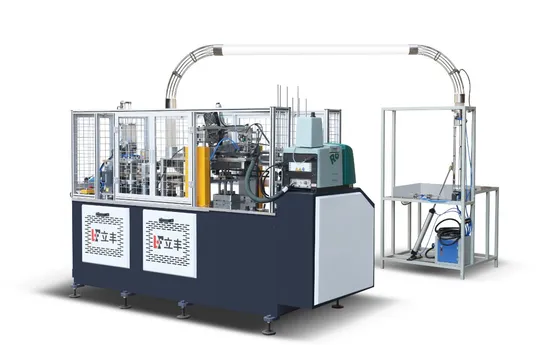

Paper Cups Coat Molding Machine/High Speed Double Wall Sleeve Machine

Product Description

PRODUCT DESCRIPTION
GWT-600 paper cups high speed coat molding machine is based on ordinary insulating cover machine on the basis of independent research and development of a transfer , fully automatic paper cup cover and efficient production equipment , through the automatic paper feeding , sealing , gluing , suits , out of the cup , such as continuous process ,complete cover the production process. Can produce a solid , hollow and corrugated duplex paper cup , suitable for all kinds of high-grade cover paper cup .

general power	5.5kw
paper request	pe coated /ripple /grey paper
voltage supply	380v50hz or customized
speed	80-110pcs/min
main motor power	2.2kw
cup size	9oz-22oz
measurement	2500*900*1700
receiver size	900*900*1900
weight	2600kg

FINISHED PRODUCTS
DETAILED IMAGES
A. The man-machine interface , PLC , touch screen control , makes the operation more convenient ; System program multiple alarm and protection function , text display alarm location accurately , which is convenient for maintenance.
B.Ultrasonic welding cup body , the structure is more stable .
C.Imported high-speed mute slide , replacing the original ordinary ways , no noise , stability , faster , stronger , longer service life .
AFTER SERVICE
PACKING
COMPANY INFORMATION
If you are interested in our paepr cup machinery,
welcome to contact us!

---
