Boom Type Floor Concrete Laser Screed Floor Leveling Machine

Product Description

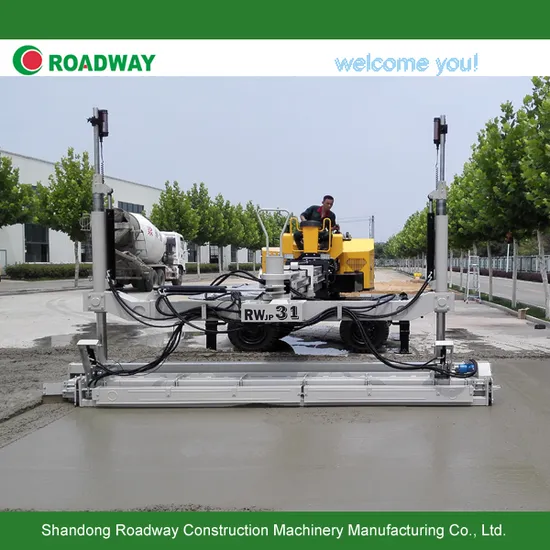

Boom Laser screed RWJP31
The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

Model	RWJP31
Type	Boom type
Engine
Model	Yanmar 4TNV98T-ZNLYS
Type	Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder
Power	57.3kW/2400rpm
Engine oil volume	10.2L
Fuel consumption	252g/kwh
Running device
Driving	4 Hydraulic drive motor
Wheel	Antiskid tyre
Steering	Front Wheel/ 4-Wheel/ Crab-shaped turn
Outrigger	4 legs, Self-leveling
Working Speed	0-8km/min
Driving Speed	22m²/min
Screed head
Type	Self-leveling
Arm Length	6000mm
Width	3850mm
Paving type	With auger
Auger force	Hydraulic motor
Exciting force	2000N
Vibration frequency	60Hz
Swing Angle	±45°
Screed head control	Ratio control
Height of screed head	560mm
Control accuracy	±1.5mm
Laser control system
Control type	Microcomputer laser scan
Control effect	Flat, slope or double slope
Operation mode
Chair position	Ride-on forward type
Forward and reverse	Handle control, stepless speed walking
Telescopic arm	Handle control, stepless speed
Steering	Hydraulic intelligent control
Cleaning system
Power	Hydraulic motor
Theoretical flow	20L/min
The Max pressure of inlet	0.5Mpa
Rated pressure	7MPa
Fuel tank volume	150L
Hydraulic oil volume	150L
Size and Weight
Outline dimension	5200×4350×3700mm
Weight	8200kg

Shandong Roadway Construction Machinery Manufacturing Co., Ltd is located in located in High-Technology Industrial Development Zone, Jining city, China. The company covers about 100000m2. The company is specialized in small and medium and special construction machinery used in the area of highway, railway, water conservancy, etc. The products are up to 40 types, 20 types of which have applied for national patent. The 40 products are divided into five categories, which are Compacting equipments, Concrete construction equipments, Canal construction equipments, Cutting and breaking equipments and Lighting equipments, such as Vibratory Rollers, Plate compactor, Concrete Laser Screed, Ride-on Power Trowel, Shot-blasting machine, Concrete Cutter, Light Tower, etc
The company has advanced and complete CNC processing equipments, such as Tetra-shaft (Triple-shaft) processing centers, CNC boring machine, CNC Lathe, CNC drilling machine, Digital bending machine, CNC wire-cutting machine, CNC water-cutting machine, CNC turret punch press and Welding robot, and 3 d coordinate measuring, etc.

---
