School Project latest Solar Water Heater with Controller

Product Description

Product Description

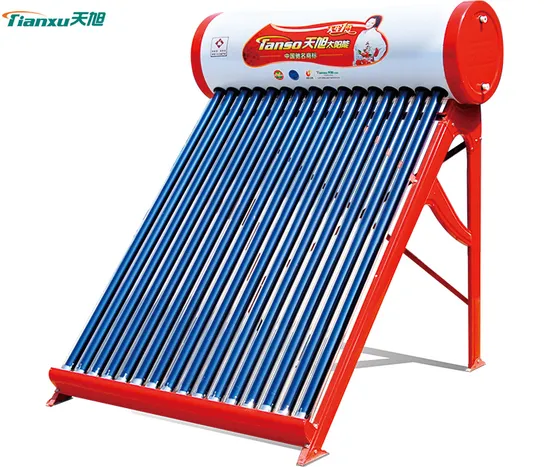

Non pressurized solar water hater is a cost-effective system for residential hot water applications. This system is designed according to thermosiphon principle and operating with proportion deference between cold water and hot water. The water heated by vacuum tube is held in the storage tank where the insulation preserves the heat.
Product Process
Product Parameters

	Series(standard)		LP-100L	LP-200L			LP-300L
General info	Rated operating pressure	Mpa	0.06	0.06			0.06
	Gross surface area	M2	1.44	2.69			4.42
	Aperture area	M2	0.92	1.62			2.7
	Installation dimensions(L*W*H)	Mm	1053*1976*1342	1883*1976*1342			2713*1976*1342
Water tank	Tank dimensions	Mm	φ472*1503	φ472*1883			φ472*2713
	Tank weight	Kg	19	30			40
	Insulation of tank	Material/mm	Polyrurethane/45	Polyrurethane/45			Polyrurethane/45
	Material inner tank	Material	Stainless steel SUS304-2B
	Diameter/Thickness inner tank	mm	φ380/0.5
	Material outer tank	Material	White painted steel
	Diamter/thickness inner tank	Mm	φ472/0.4
Tube	Type of vacuum tubes		φ58*1800mm vacuum tube
	Evacuated tubes	No.	10	20	30
Bracket	Bracket	Material/color	Aluminum alloy/silver white
	Bracket inclination	Degree	30
	Weight	kg	6	9.5		11.5
Others	Electric heating		Provision of electric heating and anode protection

Remarks

Inner tank	Stainless steel SUS304-0.5mm
Outer tank	Galvanized steel-1.5mm
Insulation	Polyurethane
Solar heat storage tank diameter(mm)	360/460
Thickness,insulated(mm)	50
Vent connection(inch)	3/4
Electric heater connection(inch)	1
Water connection(inch)	3/4

Company Profile
Since its establishment in 2002, Shandong Longguang Tianxu Solar Energy Co., Ltd (hereinafter referred to as "Tianxu") has always engaged itself in the R&D, production, sales and service of high borosilicate glass tubes and new energy products including solar water heaters, solar vacuum tubes, solar heat collecting project, air source heat pump, photovoltaic products, etc. Tianxu has 10 sets of electric furnaces, 70 sets of solar vacuum tube production line and 3 sets of solar water heater production lines. The annual output has reached one million tons of high borosilicate glass, over 16 million solar vacuum tubes makes Tianxu the largest manufacturing base of high borosilicate glass tubes and solar vacuum tubes. In 2015, Tianxu established a joint venture company with Beijing Tsinghua Solar Co., Ltd- the solar vacuum tube technology initiator in the world. The newly established company has the world's most advanced solar vacuum tube production lines.
Our Advantages
1.Cost effective solar water heating solution
2.Long operating life time but low in maintenance costs and repair requirements.
3.Short amortization rate
4.Customized solar water hating solutions.
5.High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation.
6.High-quality stainless steel in the inner tank to continuously maintain a good water quality.
Packaging & Shipping
Certifications

---
