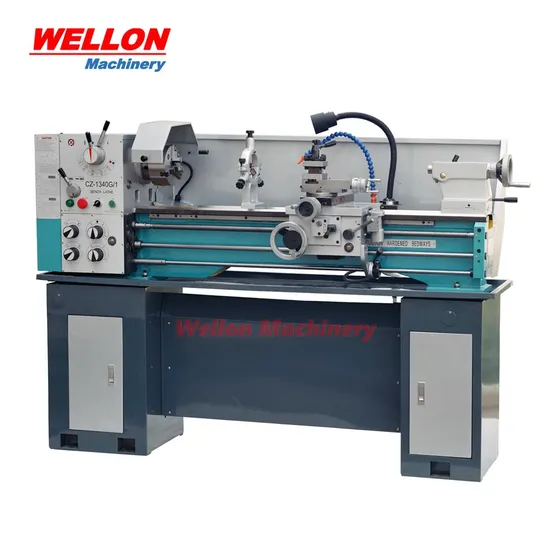

Bench Type Metal Lathe Machine (CZ1337G/1 Metal Turning Machine)

Product Description

Products Description:
Performence Features:
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
Various thread cutting function
Technical parameter:

ITEM		CZ1337G/1
Swing over bed	mm	φ350
Swing over carriage	mm	φ215
Swing over gap	mm	φ485
Width of bed-way	mm	182
Distance between centers	mm	940
Spindle taper		M.T.5
Spindle bore	mm	φ38
Step of speed		9
Range of speed	rpm	64~1500
Head		D1-4
Metric thread		26kinds (0.4~7 mm)
Inch thread		34kinds(4~56T.P.I)
Longitudinal feeds	mm/r	0.052~1.392
Cross feeds	mm/r	0.014~0.38
Diameter of lead screw	mm	φ22(7/8")
Pitch of lead screw		3mm or 8T.P.I
Saddle travel	mm	810
Cross travel	mm	150
Compound travel	mm	90
Barrel travel	mm	100
Barrel diameter	mm	φ32
Taper of center	mm	M.T.3
Motor power	Kw	1.1(1.5HP)
Motor for coolant system's power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1780×750×760
Stand (right)(L×W×H)	mm	400×370×700
Stand (left)(L×W×H)	mm	300×370×700
Machine	Kg	395/445
Stand	Kg	60/65

Standard accessories :
3/4-jaw chuck
Dead centers
Change gears
Steady rest
Follow rest
Oil gun
Some tools
Optional accessories :
Drill chuck
Live center
Face plate
Foot brake
Work lamp
Coolant system
Tool cover
Chuck cover
Stand base
DRO
Quick change tool post
Thread chasing dial
Tapper turning attachment
