4 Stroke Air Cooled Farm Equipment 170/173/178/186 Power Weeder Mini Tiller Cultivator

Product Description

Product Description

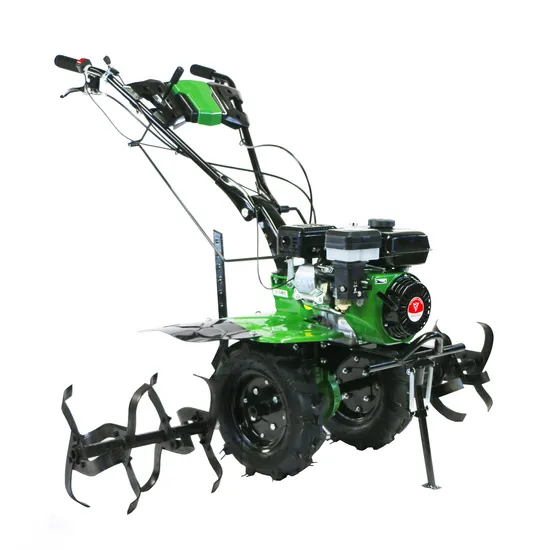

170F Petro Power Agricultural Cultivator Mini Tiller
170F Air-cooled four-stroke gasoline agricultural micro-tiller, with its unique air-cooled heat dissipation system, four-stroke gasoline power and stable performance, it has become a powerful assistant in agricultural production.
Product Advantages
High efficiency and energy saving: 170cc four-stroke gasoline engine, high fuel utilization, low fuel consumption, energy saving and environmental protection. Stable and reliable: air-cooled cooling system effectively prevents the engine from overheating and ensures stable operation for a long time. Easy to operate: one button start, easy to operate, no need for specialized skills, quick to start. Strong adaptability: applicable to a variety of terrain and soil conditions, to meet the planting needs of different crops.

Product name			170 Gasoline Tiller Machine
Model Name			1WG4.0-100FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		170F/P Gasoline engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall dimension(mm)			1680x1000x800 mm
Weights			70kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:127 r/min Slow gear S:83 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1000 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤35 kg/hm ²

Detailed Photos
Ergonomically Designed Handle
The ergonomic design of the handles allows agricultural workers to feel more comfortable during use and enhances the operating experience.

Air Filter And Fuel Tank
The air filter is easy to maintain and can be disassembled and cleaned by yourself, reducing the maintenance cost and time for agricultural workers.
The fuel tanks have good sealing performance and corrosion resistance, which can ensure that the fuel tanks will not leak or be damaged in the process of use, to protect the safety of agricultural workers and the reliability of the machine.

Mudguards
The mudguard can prevent the splash of soil, weeds and other splatters, effectively protect the key components of the microtiller from damage, prolong the service life of the machine, and reduce the maintenance cost of the agricultural workers.


Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.

---
