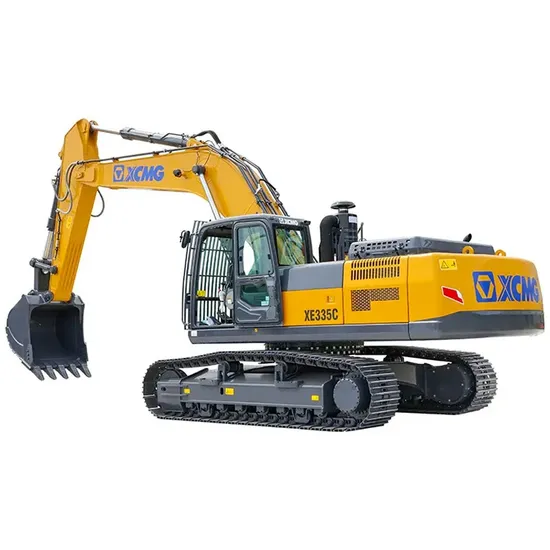

High Quality 33 Tons Hydraulic Digger Xe335c Crawler Excavator

Product Description

Product Description
*XE335C integrates experience in research and development of excavator products, and focuses on strengthening research and solutions on key technologies.
*It combines with advanced design and manufacturing methods, adopts the latest standards and focuses on the product design concept of high efficiency, energy-saving and environmental protection.
*With the ultimate goal of powerful, wide-ranging, and creating more value for customers, it has the characteristics of strong power, energy conservation, environmental protection and durability.
*It is especially suitable for earthworks, tunnels and other harsh construction environments.
*Ecological and economical: Negative flow control system maximizes work efficiency.
Smart electronic control system can achieve the balance of power and hydraulic load.
*Multiple applications: Different boom and bucket combinations maximize utilization of different conditions.
Multi-functional machine system meets various job requirements such as digging and crushing.
*Comfortable operational experience: Air Conditioner and Heater and multi-channel stereo air input system ensure the appropriate temperature.
* Equipped with advanced audio system: The cab equipped with hydraulic shock absorbers has multi-directional and multi-level adjustment functions. Product Parameters

Unit	Parameters
Operating weight	33800kg
Bucket capacity	1.4-1.6-10m³
Cylinders	6
Output power of engine	190.5/2000Kw/rpm
Max.torque/engine	872.8/1700N.m/rpm
Displacement	7.79L
Travel speed	5.5/3.3km/h
Slewing speed	9.7r/min
Gradient capability	≤35°
Ground pressure	66kPa
Digging capacity of tcuket	263kN
Digging capacity of tcuket rod	225kN
Max.traction	261kN
Main pump	Tow plunger pumps
Rated flow of main pump	2×280L/min
Pressure of main safety valve	34.3/37Mpa
Pressure of traveling system	34.3Mpa
Pressure of swing system	26.5Mpa
Pressure of pilot system	3.9Mpa
Fuel tank capacity	630L
Hydraulic tank capacity	320L
Engine oil volum	28L
Total length	11388mm
Total width	3190mm
Total heigth	3515mm
Width of rotary table	2950mm
Length of track	4725mm
Total width of chassis	3190mm
Width of track	600mm
Wheelbase of track	3813mm
I Track gauge	2590mm
Counterweight ground clearance	1170mm
Min.ground clearance	495mm
Min.tail swing radius	3570mm
Max.digging height	10074mm
Max.unloading height	6898mm
Max.digging depth	6972mm
Digging depth at the range of 8 feets horizontally	6728mm
Max.vertical digging depth	5366mm
Max.digging radius	10650mm
Max.swing height	4424mm
Boom length	6400mm
Length of bucket rod	2670mm
Bucket capacity	1.4m³
Length of bucket rod	2900/3200/4000mm
