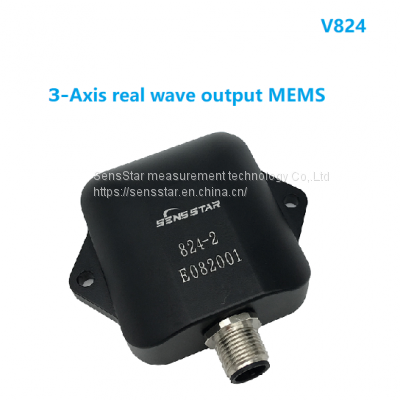

V824 3-Axis Variable capacitance(VC) MEMS accelerometer, real vibration wave CAN/485 digitaloutput sensor

Product Details

Product Description

Product Description
V824 3-Axis Variable capacitance(VC) MEMS accelerometer, real vibration wave output sensor: 485-ASCII/CAN digital output available.
Model V824 is a bi-axial accelerometer which simultaneously measures acceleration and low-frequency vibration in two mutually perpendicular axial. V824 is bi-axial capacitive accelerometer family utilizes a silicon Micro-Electro-Mechanical System (MEMS) variable capacitance sensing element. The output signal is scaled as a voltage which is proportional to the applied acceleration, signal format is 4~20mA loop current. The accelerometer is powered by a single regulated supply between 12 to 30 Vdc. Thermal drift has been compensated by internal circuit for the best environment stability. The sensing element and electronics are contained in a water proof housing with a M12 5-pins connector. Signal ground is isolated from the test object that benefit from the anodized aluminum housing. The accelerometer can be mounted by M4 metric screw or adhesive. V824 is well-suited for a wide variety of R&D or OEM applications requiring low frequency measurements and reliability package. Model 18T-L is the mating cable for the sensor, refer below measurement configuration for wiring. 485-ASCII/CAN digital output available.
Feature / Application
• 4~20mA current output, 485-ASCII/CAN digital output available.
• Rugged design
• High sensitivity
• Hermetic seal
• Case isolated
• ESD protection
• Plug and play application
• EMI / RFI shielded

---
