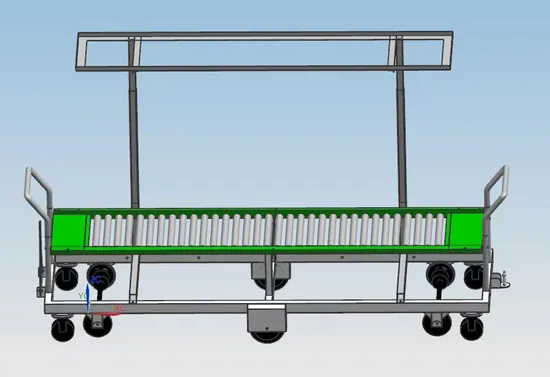

Advantage features: The double-layer harvesting and transportation vehicle is a very practical harvesting and transportation vehicle. The vehicle fully utilizes the perspective of ergonomics, designs a two-layer pallet, and installs rollers on it. Operators can easily move the harvesting box; The whole vehicle is composed of 4 track wheels and 6 rubber wheels, which can walk on tracks or land. Maximum load capacity of 500 kilograms, capable of 360 degree rotation, suitable for roads between 2 and 3 meters in the middle; Installing a third layer of pallets can hold cardboard boxes or defective fruits; Equipped with a drag and drop system, it can pull each other on its own; A 2000 square meter greenhouse with 2 units is currently a popular product among users;
| Product model | LRQ-SJ-6.5 | crane motor | 24v0.5KW |
| rise | 6.5 meters | Lifting motor | 24v0.8KW |
| Platform size | 1800*450mm | Charger | 24v/15A |
| Table Height | 520mm | Rising and falling speed | 3-5m/mim |
| External dimensions | 2350mm*730mm*2120mm | Walking speed | 2Kw/h (adjustable) |
| Wheel size | Center distance 550mm, outer package 620mm | Battery | 24v230Ah |
| Self height | 2120mm | system voltage | 24v |
| Steering method | Forward, backward, left and right, lateral movement, 360 degree rotation | Control form | Electric buttons, knobs, push-pull buttons |
| Equipment load capacity | 150Kg | Security support | 4 safety legs |
| Track width | The distance between the centers of the front and rear wheels is 1600mm | weight | 750Kg |
| Track wheel | Power wheel 45 # steel treatment+super strong nylon for driven wheel | Equipment structure | Cross type lifting |
| Walking style | Vertically electric, horizontally manual | Equipment color | Grey, Outdoor Yellow |
| Tabletop board | Anti slip patterned aluminum plate | Forward and backward | Foot switch control |
| Track materials | Diameter 50, wall thickness 3.5 galvanized pipe (customer's responsibility) | Track bracket | Center distance 550mm, spacing 1.5 meters (customer's responsibility) |
| Entry method | Mechanical automatic door opening and closing design. Convenient for personnel to move up and down, improving work efficiency | Side foot pedal | Convenient for staff to get up and down and ensure safety |
| safety factor | Add alarm systems to the left, right, front, and rear of the picking truck. If the tilt of the picking truck exceeds 2 degrees, an alarm will be triggered. If it exceeds 3 degrees, an alarm will be triggered. This system can detect the standardization, safety, and high reliability of the track's long-term use | user-friendly design | Supporting staff cooling fan, this is an upgraded detail to improve work efficiency |
| controller | Brushless servo controller | electric machinery | 800w brushless servo motor with high torque, large output power, and long service life |
