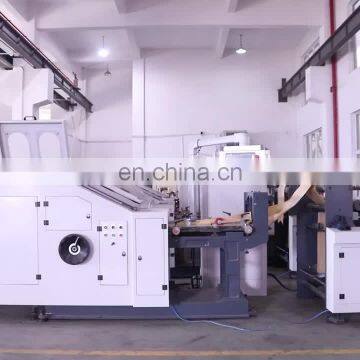

Leading Manufacturer square bottom paper bag machine
Machine working video: http://youtu.be/RLuGjGLn0dc (please copy)
All paper bag making machine working video:
/playlist?list=PLnDMbEqgt27xor_FtBV1TrKtM_gbygOTT
(please copy)
Product Description
1. Features:
Paper Bag Making machine can produce the square bottom paper bag in conjunction with overseas
advanced technology. The machine has many advantages such as high speed,high productive efficiency
and wide-rang adjustment.
It is an ideal machine for producing Square Bottom Shopping bags to pack gifts, cosmetic, etc.
2. Advantages:
1)Suited for 60-180gsm roll sheet paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system
3.Technical Parameters:
MODEL
| CY-290
| CY-460
|
Width of Paper roll
| 320-930 mm
| 600-1300 mm
|
Cutting Length of Bag
| 290-510 mm
| 290-510 mm
|
Width of Bag
| 100-290 mm
| 220-450 mm
|
Width of Bag Bottom
| 60-160 mm
| 80-180 mm
|
Paper weight
| 60-160 g/m2
| 80-180 g/m2
|
Max. Diameter of Paper Roll
| 1500 mm
| 1500 mm
|
Internal Diameter of Roll Core
| 76 mm
| 76 mm
|
Max.Speed
| 200 pcs/min
| 200 pcs/min
|
Total Power
| 15Kw
| 15Kw
|
Weight of Machine
| Approx 9000 kg
| Approx 10000 kg
|
Overall Dimension(L*W*H)
| 8600 mm × 2500 mm × 1800 mm
| 8600 mm × 3000 mm × 1800 mm
|
