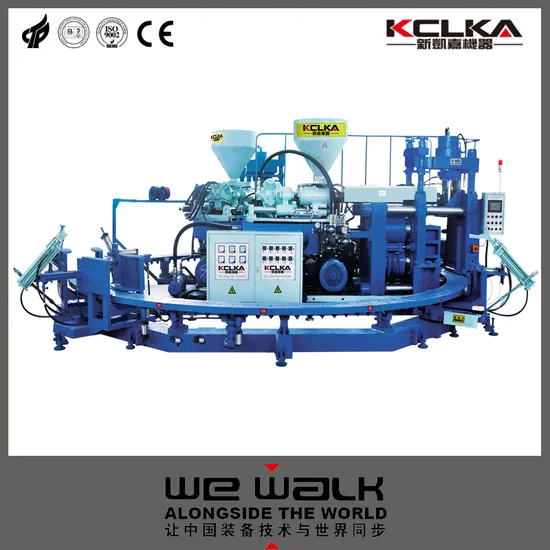

New Brand PVC Air Blow Injection Molding Two Color Boot Shoe Machine

Product Description

Item	Unit	Specification
Model		EK-2616
Raw material		PVC
Station number	Pcs	16
Screw diameter	mm	¢60, ¢50
Screw speed	r/pm	0-150
Max Injection capacity	cm3	565,300
Injection hydraulic	Mpa	90,75
Clamping force	Ton	45,90
Power of motor	kw	15,11
Power of motor	kw	8.7
Limit of temperature	point	4
Model size L*W*H (max)	mm	330*180*460
Machine size	mm	4900*4500*2100
Machine weight	Kg	About 19000

Data are not binding and may be changed without prior notice.

The machine is computer numerical control, driven by Hydraulic Motor, full hydraulic pressure. Hydraulic system is controlled by proportional valve. The import hydraulic parts are optimized in composition, no oil leak. Practical design, large production, low energy consuming, high degree of automatization.

Feature:
1. The machine can be used to produce single or double color rain boot with the raw material for PVC.
2. Humanized man-machine interface, PLC controlling, touch-screen display.
3. Double-ratio hydraulic system;
4. Accurate digital measurement;
5. Rational layout, easy to operate and it can be run without professionals;
6. This machine has the manipulator to operate, the fully-automatic control, and may save power and increase the production.
FAQ.

Delivery date:
Within 50 days After receiving the 30% earnest money

Payment term:
Advance payment at order 30%, 70% before shipment

Delivery State:
Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Our technician will manage all the machine things for you and at the same time train your workers on
how to use and maintain the machine.

Guarantee Time:
One-year warranty and lifelong service. During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
Common FAQ:
Q: How long is your delivery time?
A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
Q: Which certificate do you have?
A: CE, FDA and ISO13485.

---
