Product Description
Product Description

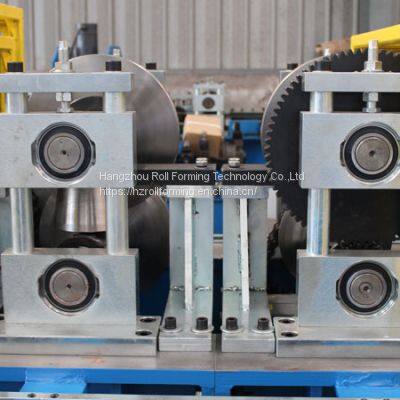

This series of garage door roll former is used to make various guide rails. A guide rail is a device or mechanism to direct products, vehicles, or other objects through a channel, conveyor, roadway, or rail system. Our light steel frame machine can make guide rails for garage doors, rolling shutter doors, elevator or lift shafts, and so on.
Features and Advantages of Garage Door Guide Rail Roll Forming Machine
·
Our light gauge steel framing machines is specially designed for forming rolling shutter door panels under mass production.
·
Production speed: 20/30/40/50/60 m/min optional.
·
Working with a non-stop flying cut and a full automatically stacking system, its max production speed can reach 60 m/min.
·
Cassette-type platform and quick-change machine base for multi-profile purposes are available for further choice.
·
Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
·
Ready machines in stock for prompt delivery
Suitable Coil Sheet Material for Garage Door Roll Forming Machine
Suitable material: Cold/hot Rolled Steel, Galvanized Steel
Thickness: 0.8-1.3/1.0-1.6/1.5-2.0 (mm)
Yield Strength: 230-300 (MPa)
Width: as profile requests
Production Line Components and Parameters of Garage Door Roll Former
Decoiler
| 5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
|
Filming covering device
| optional
|
Front shear
| optional
|
Lubricating device
| no need
|
Roll forming system
| 20/30/40/50/60 m/min (optional)
|
Safety cover
| optional
|
Post cutting
| Motor/hydraulic (optional)
|
Output System
| Manual supporter/ Automatic Stacker (optional)
|
Stack Master
| (Output direction) Lateral/Longitudinal (optional)
|
Hydraulic system
| Power supply for decoiler /post-cutting system
|
Electric control system
| MITSUBISH/ SIEMENSE/AMS (optional or as requested)
|
The Working Flow of Garage Door Roll Forming MachineGarage Door Guide Rail Roll Forming Machine ApplicationGarage Door DrawingsSpecification of Garage Door Roll Forming Machine
Machine Condition
| Fully New, A-Grade quality
|
Panel Shape
| As profile drawing and customer’s requirements
|
Operator
| needed 1-2 persons
|
Power Supply
| 220V/380V/415V/460V, 50/60Hz, 3P (as requests)
|
Equipment Weight
| About 15t
|
Dimension
| (L*W*H) about 25*3*2m
|
LOADING SIZE
| Normally need 1 x 40' container.
|
Equipment Color
| Normally Blue/White, or as requests;
|
Place of Origin
| Zhejiang, China (Mainland)
|
Packing
| Standard and careful export packing
|
Our company, Hangzhou Roll Forming Technology Co, Ltd, has engaged in desingning and manufacturing roll forming, coil processing equipment and tube/pipe mill for 17 years. We provide roll forming production line, cold roll forming machine and etc.
>>
