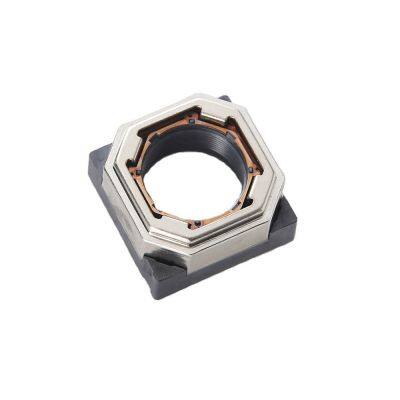

| Technical Parameter of Voice Coil Motor | ||||
| Model No. | 04-006-001 | 04-006-002 | 04-006-013 | 04-006-012 |
| Dimension | 18.2×18.2×10.3mm | 22.2×18.2×10.3mm | 22.2×22.2×14.6mm | 22.2×22.2×14.6mm |
| Weight | 5g | 5g | 13g | 13g |
| Mount | M12xP0.5 | M12xP0.5 | M12xP0.5 | M12xP0.5 |
| Weight of lens | <5g | <5g | <8g | <8g |
| RFL | 3~5mm | 3~5mm | 3~8mm | 2~8mm |
| Displacement direction | Along Tilt | Along Tilt | Along Tilt | Along Tilt |
| Working ambient temperature range | -30ºC~+60ºC | -30ºC~+60ºC | -30ºC~+60ºC | -30ºC~+60ºC |
| Storage ambient temperature range | -40ºC~+70ºC | -40ºC~+70ºC | -40ºC~+70ºC | -40ºC~+70ºC |
| Rated current | <120mA | <120mA | <120mA | <120mA |
| Max. current | <120mA | <120mA | <120mA | <120mA |
| Coil resistance | 32Ω±2(25ºC) | 32Ω±2(25ºC) | 32Ω | 32Ω±5%(25ºC) |
| Starting current | 15~40mA | 15~40mA | 20~40mA | 15~40mA |
| Displacement | >0.45mm | >0.45mm | >0.60mm | >0.70mm |
| Hysteresis accuracy | <0.015 | <0.015 | <0.01 | <0.015 |
| Linearity | <0.02mm | <0.02mm | <0.04mm | <0.03mm |
| Temperature rise | ≤100ºC | ≤100ºC | ≤100ºC | ≤100ºC |
