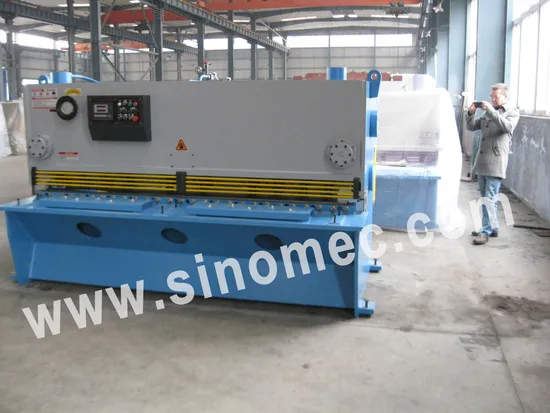

Guillotine Shear / Cutting Machine / CNC Hydraulic Shearing Machine (QC11K-6X3200)

Product Description

1. Standard Facilities:
1). ESTUN E21S NC control + Frequency inverter control back gauge and shearing times
2). Front support arms with stopper and measure scale
3). Main electric components are from Siemens or Schneider.
4). Hydraulic seals are from NOK, Japan
5). Hydraulic valves are from Germany Rexroth
6). Hydraulic pump is from SUNNY brand (USA venture in China )
7). Ball screw & Line guide rail Taiwan HIWIN
8). Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
9). Hydraulic top-drive, steadiness and reliability
10). With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet
11). With motor-driven back gauge and counter device
12). CE standard front light curtain and back-safety curtain
2.Control System
NC Controller: ESTUN E21S & E200S controller
CNC Controller: DAC310, DAC360 DELEM Holland.
3. After-Sale Services
1). Free installation, trial start and adjustment, training. Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
2). Warranty period is 2 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
3). We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
4. Main functions:
1). The machine frame is welded construction with steel plate, and stress is eliminated by vibration. With high strength, stable performance, easy operation and convenient maintenance.
2). As the cutting beam of machine has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3). With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator (Nitrogen cylinder but we can hydraulic return).
4). Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5). The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6). It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7). Motorized adjusting and manual adjusting for the back gauge (take up the back-gauge system, cutting plate without back gauge).

Technical Parameters:
Model	Mild Steel	Cutting Length	Depth of Throat	Back Gauge Range	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L×W×H(mm)	Weight(t)
	(450MPA)	(mm)	(mm)	(mm)
4×2000	4	2000	80	800	0.5°~2°	14	5.5	2600×1680×1750	3.8
4×2500	4	2000	80	800	0.5°~2°	14	5.5	3125×1750×1765	4.5
6×2500	6	2500	80	800	0.5°~1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	800	0.5°~1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	1000	0.5°~1°30′	10	7.5	4650×1840×2100	8.5
6×5000	6	5000	80	1000	0.5°~1°30′	8	7.5	5650×2050×2400	10.5
6×6000	6	6000	80	1000	0.5°~1°30′	8	7.5	6650×1980×2380	15.2
8×2500	8	6000	80	800	0.5°~1°30′	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	800	0.5°~1°30′	12	7.5	3850×1990×2050	6.8
8×4000	8	4000	80	1000	0.5°~1°30′	10	7.5	4650×1890×2075	9
8×5000	8	5000	80	1000	0.5°~2°	7	15	5650×2050×2400	12.5
8×6000	8	6000	100	1000	0.5°~2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	100	800	0.5°~2°30′	10	15	3195×1915×2205	8
10×3200	10	3200	100	800	0.5°~2°30′	8	15	3895×1900×2235	8.8
10×4000	10	4000	100	1000	0.5°~2°30′	6	15	4695×1970×2270	9.15
10×5000	10	5000	100	1000	0.5°~2°30′	5	15	5700×2115×2715	16
10×6000	10	6000	100	1000	0.5°~2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	100	800	0.5°~2°30′	10	15	3195×2000×2210	8.3
12×3200	12	3200	100	800	0.5°~2°30′	8	15	3895×1950×2240	9.2
12×4000	12	4000	100	1000	0.5°~2°30′	5	15	4710×1950×2450	13
12×5000	12	5000	100	1000	0.5°~2°30′	5	18.5	5750×2115×2800	20
12×6000	12	6000	100	1000	0.5°~2°30′	5	18.5	7150×2300×3100	29
16×2500	16	2500	100	800	0.5°~2°30′	8	15	3215×1970×2340	8.7
16×3200	16	3200	100	800	0.5°~2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	100	1000	0.5°~2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	100	1000	0.5°~3°	5	22	6000×2300×3000	23
16×6000	16	6000	80	1000	0.5°~3°	5	37	7250×2400×3100	36
20×2500	20	2500	100	800	0.5°~3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	800	0.5°~3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	1000	0.5°~3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	1000	0.5°~3°	4	37	6000×2300×3050	29
25×2500	25	2500	120	800	0.5°~3.5°	5	37	3465×2130×2710	15
25×3200	25	3200	120	800	0.5°~3.5°	5	37	4120×2200×3000	21
25×4000	25	4000	120	1000	0.5°~3.5°	4	37	4950×2200×3150	26
30×2500	30	2500	120	800	0.5°~3.5°	4	37	3465×2170×2770	16
30×3200	30	3200	120	800	1°~3.5°	3	37	4200×2300×3200	23
Note: No notice if any change of the above statistics made.

---
