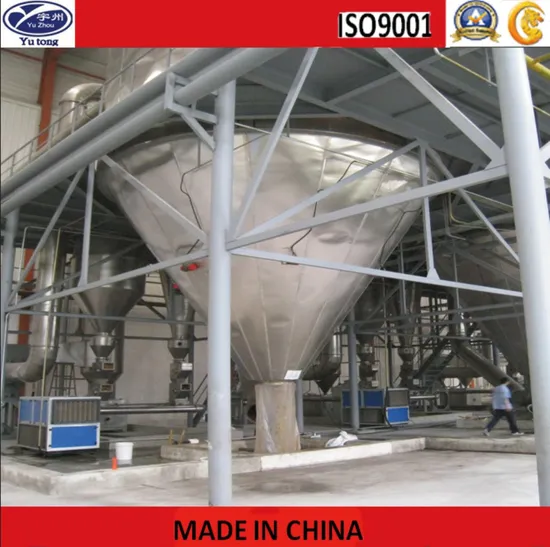

Sodium Silicate Chemical Material Spray Drying Machine

US$12,000.00-200,000.00 1 set (MOQ)

Basic Info.

Model NO.
LPG
Type
Spray Drying Equipment
Application
Liquid
Fuel
Heavy Oil
Operating Pressure
Atmospheric
Condition
New
High Efficient, Good Economic
Quick Drying
Package
Wooden Case
Delivery
30days
Certificate
ISO14001 ISO9001
Professional Manufacturer
Strong Technical Power
Transport Package
Export Packaging
Specification
LPG-5 to LPG-3000
Trademark
Yuzhou
Origin
China
HS Code
842119
Production Capacity
5-3000 Evaporation

Product Description

Company introduction :JIANGSU YUTONG DRYING ENGINEERING CO.,LTD with Sodium Silicate Dryer

Introduction: Sodium Silicate Spray Dryer Description
After filtering and heating, the air enters into the hot air distributor at the top of the centrifugal spray dryer, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.

Process Flows of Sodium Silicate Spray Dryer
For more information, please refer to the working schematic diagram of LPG spray dryer.

Application
LPG high-speed centrifugal spray dryer is a kind of dedicated equipment for drying emulsion, suspension, paste and solution. This spray drying machine is particularly prominent in drying polymers, resins, dyes, pigments, ceramics, glass, rust remover, pesticides, carbohydrate, dairy products, detergents, fertilizer, organic compounds and inorganic compound liquids. Specifically, this centrifugal spray dryer is applied to the following fields:
1. Pharmaceutical industry
Including all kind of Active Pharmaceutical Ingredients, chinese medicine, chemical medicine etc.
2. Chemical industry
Potassium chloride (sodium chloride), alkaline dyes and pigments, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agents, amino acid and white carbon black.
3. Plastic resin
AB, ABS emulsion, urea resin, phenolic resin, polyethylene, polyvinyl chloride, etc.
4. Food industry
Rich fat milk, cocoa milk powder, milk replacer, pig blood powder and egg white (yolk)
5. Food and plant
Oat, chicken liquid, coffee, instant tea, flavoring meat, protein, soybean, peanut protein and hydrolysate
6. Carbohydrate
Corn steep liquor, corn starch, glucose, pectin, malt sugar, potassium sorbate and so on

Features of Spray Drying Machine
1. LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2. This spray dryer has excellent uniformity, liquidity and solubility as well as high purity.
3. This spray drying machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.

Technical Parameter of Centrifugal Spray Dryer
Item/Model LPG
5 25 50 100 150 200-2000
Inlet Temperature (ºC) ≤ 350
Outlet Temperature (ºC) 80 to 90
Maximum Moisture Evaporation (kg/h)* 5 25 50 100 150 200-2000
Drive type of Centrifugal Spray Nozzle Compressed air drive Mechanical drive
Rotating Speed 25000 22000 21500 18000 18000 15000
Diameter of Spray Disk (mm) 50 102 108 108 150 180-340
Heat Source Electricity Electricity Electricity+ steam, fuel oil, gas Electricity+ steam Electricity+ steam, fuel oil, gas Depending on users
Maximum Power of Electric Heating (kw) 8 31.5 60 81 99
Overall Dimensions (L × W × H) 1.8 × 0.93 × 2.2 3 × 2.7 × 4.26 3.7 × 3.2 × 5.1 4.6 × 4.2 × 6 5.5 × 4.5 × 7 According to the actual situation
Dry Powder Recovery (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95
