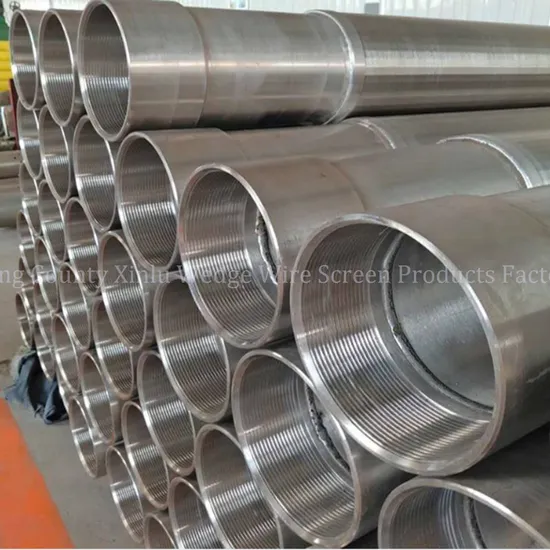

Continuous Slot Sand Control Screen Pipe 7" 178mm

Product Description

Wedge Wire Continuous Slot Sand Control Oil Well Screen Pipe 7" 178mm Company: Anping County Xinlu Wire Mesh Products Co., Ltd.
Discover our meticulously crafted 7" (178mm) well screens, made with a perfect combination of V-shaped wire and rods. Each wire is expertly welded onto the rod at every intersection point, creating a strong and reliable product. These water well screens feature a unique structure with a high open area, ensuring precise slot dimensions. With exceptional heat resistance, anti-corrosive properties, excellent machine capability, durability, safety, and reliability, these screens are ideal for various medium filtering applications.
Well Screen Pipe Specification:

Common Specifications of Stainless Steel Wedge Wire Water Well Screens
Size (inch)	O.D. (mm)	Slot Size (mm)	Length (m)	Collapse Strength (Bar)	Tensile Weight (ton)	Profile Wire (Width × Height) (mm)	Support Rods (mm)
3-1/2	88.9	1.0	2.9	>22	10.2	2.3 × 3.5	3.8 mm / 22
4-1/2	114.3	1.0	2.9	>28	11.5	2.3 × 3.5	3.8 mm / 22
6-5/8	168.3	0.75	5.8	>40	12.8	2.3 × 3.5	3.8 mm / 32
6-5/8	168.3	1.0	5.8	>33	12.8	2.3 × 3.5	3.8 mm / 32
6-5/8	168.3	0.63	5.8	>83	45	3.2 × 6.0	6.0 mm*32
8-5/8	219.1	1.0	5.8	>34	21.9	2.3 × 3.5	3.8 mm / 48
8-5/8	219.1	1.0	5.8	>50	38.2	3.0 × 5.0	4.0 mm / 48
8-5/8	219.1	1.0	5.8	>60	46	3.2 × 6.0	5.0 mm / 48
10-3/4	273.1	0.75	5.8	>50	32.9	2.3 × 3.5	4.9 mm / 55
10-3/4	273.1	1.0	5.8	>60	39.5	3.0 × 5.0	4.9 mm / 55
10-3/4	273.1	1.0	5.8	>100	48	3.2 × 6.0	5.0 mm / 55
12-3/4	323.9	1.0	5.8	>120	37.2	3.0 × 5.0	4.0 mm / 50
14	355.6	1.0	2.9	>80	37.8	3.0 × 5.0	4.0 mm / 59

Discover our Continuous Slot Sand Control Screen Pipe made from a variety of materials including low carbon Q195 Q235, stainless steel Grade 201 205 321 304 304L 316 316L, Duplex stainless steel 2205, 2207, and Hastelloy alloys C. This product is perfect for a wide range of applications.
Company name: Anping County Xinlu Wire Mesh Products Co., Ltd.
Welcome to Anping County Xinlu Wire Mesh Products Co., Ltd. Product Description Our Slot / Gap Wire Mesh offers customizable options for slot/gap sizes ranging from 0.03mm to 3.00mm and lengths from 0.5m to 6m. Standard lengths of 10ft/20ft and 2.9m/5.85m are also available to fit containers seamlessly.
Whether you need precise slot/gap measurements or specific lengths, our wire mesh products are designed to meet your requirements effectively.

Well Screens - End Connection Types Our well screens, provided by Anping County Xinlu Wire Mesh Products Co., Ltd., are designed to meet various installation requirements. We offer three types of connections:
Thread Connection: Allows for easy installation and removal, ideal for applications requiring frequent maintenance. Baffle Ring Connection: Provides a secure fit, ensuring reliable performance and preventing leakage. Flange Connection: [Please provide additional information on this connection type.]
Water Well Screens By Anping County Xinlu Wire Mesh Products Co., Ltd. Surface Treatment: Galvanized or Painting Zinc or Polishing: electrolytic polishing, pickling polishing
Key Features: High Open Area: Ideal for constructing high-quality water wells, oil wells, and gas wells. Cost-Effective Operation: Promotes groundwater infiltration, leading to abundant water supply and reduced energy consumption. Pump Protection: Slows down groundwater speed, preventing sand and particles from entering under high pressure, reducing pump abrasion. Extended Well Lifespan: Allows groundwater to enter easily and at a slower rate, contributing to well longevity.
Well Screen Tubes Our Well Screen Tubes (Strainer Pipes) are designed as filtered water tubing with perforations. They can be used with deep well pumps, water treatment equipment, environmental protection systems, desalination treatment, running water treatment, water softening treatment, and various industrial applications such as petroleum product terminal filters, acid and alkali liquid filters, and organic solution recycling filters.
Advantages: Increased Open Area: The continuous slot opening design significantly enhances the available open area, allowing for greater access to the water-bearing zone. Clog-Free Design: The "V" shaped profile wire prevents clogging and ensures a continuous and uninterrupted flow. Efficient Well Development: The continuous slot opening facilitates uniform and efficient well development. Strong and Accurate Construction: Our ladder-like wire welded screens are structurally robust with high open areas and precise slot dimensions. Easy Maintenance and Cost-Effective: Our ladder-like wire welded screens are easy to backwash, have a long lifespan, and offer safety, reliability, and low comprehensive costs. Applications: Our products find extensive applications in water wells, oil and mining industries, coal industry, chemical fertilizers, food industry, environmental protection, sewage treatment, food filter screen mesh, salt industry, and more.
Company name: Anping County Xinlu Wire Mesh Products Co., Ltd.
Welcome to Anping County Xinlu Wire Mesh Products Co., Ltd. We specialize in providing Johnson Water Well Screens that cater to various industries such as water well, food and beverage, pharmaceutical, refining, water treatment, mineral processing, and more.
Key Features: Inward Opening Slots (FOTI): Prevents sand clogging for efficient filtration. Minimal Pressure Drop and Stable Flow Rate: Ensures consistent pumping and extends equipment lifespan. High Efficiency: Continuous slot wedge wire design offers greater open area for improved performance. Sturdy Longitudinal Support Rods: Reinforced with strong rods for excellent pressure resistance and durability.
Water Well Screens Our water well screens are designed for various industries and applications, including:
Oil and gas upstream well screens Deep vertical wells Supply wells Driven/jetted point wells Drilled wells High flow municipal wells Domestic water wells for residences and farms Anping County Xinlu Wire Mesh Products Co., Ltd. is a leading manufacturer of wedge wire mesh products based in Anping County, Hebei Province, China. Our product range includes stainless steel filter screens, Johnson wire screens, water well screen tubes, oil well screens, and more. Our products are suitable for a wide range of applications, providing efficient filtration and screening solutions for various industries.

---
