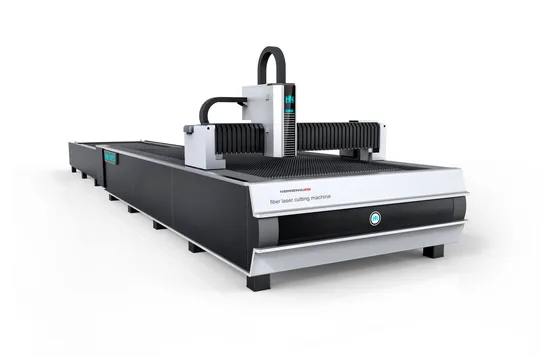

Exchange Table 3015 Fiber Laser Cutting Metal Stainless Steel Iron Aluminum Machine Price

Product Description

Product description
Exchange Table 3015 Fiber Laser Cutting Metal stainless steel iron aluminum Machine price
Application Industry Cutting a wide variety of metal plates,tubes,mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rate metal and other materials cutting.
Application Industry

Industry of kitchen ware,lamps and lanterns,panel beating,metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Model:HN-3015CJ
Working area	3000MM(L)*1500MM(W) Support customization	Maximum speed	120M/MIN
Laser type	Fiber Laser generator	Maximum accelerated	1.2G
Transmission system	Gantry double-drive structure	Overall Diension	4.5m*2.28m*2.0m
Laser power(optional)	1000W/1500W	Gross Weight	3500KG
Positioning Accuracy	±0.03MM	Woring enviroment	Temp :0-40ºC,humidity:≤80ºC,No,condensation
Reposition Accuracy	±0.02MM	Power supply	Single phase 220V 50HZ/60HZ

Main Features1) High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
2) Gantry double-drive structure, with imported German rack&pinion transmission system,improves the production efficiency.
3) High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
4) Open worktable, simple operation and small space occupation.
Technical parameter

O.	Model	Name	Quantity	Remarks
1	HN-3015	3000mm*1500mm	1 set	Hongniu
2	Laser source	1000W(optional)	1 set	MAX/Raycus/IPG
3	Water chiller	Special water chiller for fiber laser generator	1 set	standard S&A
4	Laser head	High accuracy professional fiber laser head	1 set	Raytools
5	Control system	Cypcut	1 set	Ncstudio
6	Driving system	High speed servo motor	4 sets	Fuji servo motor
7	Reduction gear	Motoreducer	3 set	Motoreducer
8	Electric components	imported	1 set	Scheider
9	Guide rail	imported	1 set	PEK
10	Rack	imported	1 set	LEITESEN
11	Proportional valve	imported	1 set	SMC

Certificate


Detailed Images

Sample
According to customer's requirements
It is suitable for cutting carbon steel,stainless steel,Brass,Copper,aluminum...cutting of common metals


Our service
Pre-Sales Service
*24-h online service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
*24-h online service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely,3. More than 10 years experience.Perfect workmanship. Always committed to research and development.Customized specifications are welcome.



Packing&Delivery

---
