Product Description
Product Description
Standard FeaturesMotorized uncoiler
Variable speed operations
Hydraulic mandrel expansion
Pneumatic disk brakes
Pneumatic pressing arm
A frame for loacting the coil
Electric eye type loop control
11pcs straightener rolls
Worm gear adjustment of upper rolls
Servo-driven feeder-straightener
OptionsHydraulic coil car
Special expansion range
Automatic oiling unit
Hands-free input supporting
Product Paramenters
Suitable Material
| Cold rolled sheet, galvanized sheet, pre-painted sheet, and stainless steel sheet.
|
Suitable Thickness
| 0.3-1.5 mm
|
Max Width of Material
| 600 mm
|
Max Loading Weight
| 5T
|
Inner Diameter
| 400 mm
|
Outer Diameter
| 600--1000 mm
|
Diameter of Main Shaft
| ø90 mm
|
Uncoiling Speed
| 0-40 m/min, step-less.
|

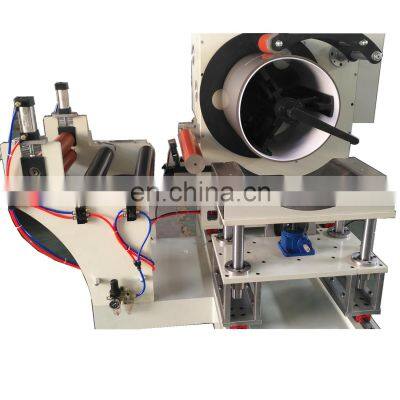

below is pulling roller and recticiation system
with line rail that to easy put material on
Main Features
1. Hydraulic cylinder expands the mandrel that automatically centers the coil.
2. The reinforced spindle is capable of loading the coil more than 5tons.
3. AC Drive and proportional speed control combine to provide smooth material payoff.
4. Equipped with inverter and disc brake, MTC models use a manually adjustable speed control knob to make the operator set the payoff speed.
5. Pneumatic press arm and support arm prevent coil from loosening.
6. Coil car allows simple and safe coil loading increasing productivity.
7. Custom and application specific solution is available
This auto uncoiler is used to support the coil for roll forming machine 1. Automatic uncoiler is an auxiliary equipment for roll forming machine. it is composed of feed main machine, hydraulic station and control system. When it works together with roll forming machine and auto stacker, they make up a completely steel panel production line. 2. The working process is loading coil→expanding to fix the coil→uncoiling→feeding the sheet into roll forming machine. There is a sensor, to keep uncoiler goes at the same speed as roll forming machine. 3.The advantage for automatic uncoiler is, highly automatic, high producing efficiency, and low labor cost.
>>
