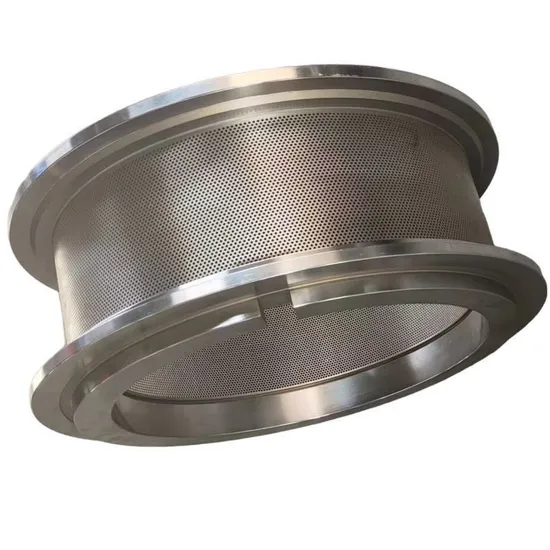

High Quality Competitive Price Pet Food Production Line Parts Pellet Die

US$400.00-4,000.00 1 Piece (MOQ)

Basic Info.

Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Pellet Mill Type
Ring Die Pelleter
Condition
New
Applicable Materials Shape
Granular
Warranty
One Year
Transport Package
Wooden Case
Specification
According to different type
Trademark
hanpai
Origin
China
HS Code
8436990000
Production Capacity
3000 Pieces/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 50.00cm
Package Gross Weight
150.000kg

Product Description


Specification parameters of feed mills ring die:
•Material:Quality chromium Steel
•Machining aperture:0.8mm up to 18mm
•Outer diameter of workpiece:300mm up to 1200mm
•Inner diameter of workpiece:200mm up to 900mm
•Surface hardness:HRC 52-56
•Ring die wall thickness:15mm up to 100mm
•Compression ratio:according to user demand
Specification Type Hole Diameter Working Width Designed Output
IDAH 530F 0.8 193 1.0t-1.5t/h
FAMSUN 600 170 0.8-1.2t/h
ANDRITZ 520 178 0.8-1.2t/h
IDAH 530F 1.0 193 2.5t--3.9t/h
FAMSUN 600 170 2.2t-3.5t/h
ANDRITZ 520 178 2.2t-3.5t/h
IDAH 530F 1.2 193 2.8t-4.6t/h
FAMSUN 600 170 2.5t-4.0t/h
ANDRITZ 520 178 2.5t-4.0t/h

Feed Varieties Hole Diameter Compression Ratio
Poultry&livestock feed Φ2.0-Φ4.5 1:9-1:20
Shrimp Feed Φ0.8-Φ2.0 1:20-1:35
Fish feed Φ1.5-Φ5.0 1:10-1:25
Crab feed Φ1.5-Φ5.0 1:15-1:26
Biomass and Fertilizer Φ5.0-Φ18.0 1:4-1:10
Cattle and sheep feed Φ4.5-Φ10.0 1:6-1.12
Feline feed Φ1.6-Φ3.5 --
