Pocket Size Surface Roughness Tester Follow ISO DIN Measurement Method
Advanced Portable Surface Roughness Tester SR-300T is a high accuracy instrument for measuring surface roughness. It can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc.
Portable Surface Roughness Tester SR-300T allows surface roughness measurement both on metal and non-metal workpieces. It is suitable for machining and manufacturing, quality control, inspection departments, especially for measurement on large and heavy workpiece, assembly line on site. The SR-300T is a Non Destructive Testing instrument, damage won't caused to testing piece.

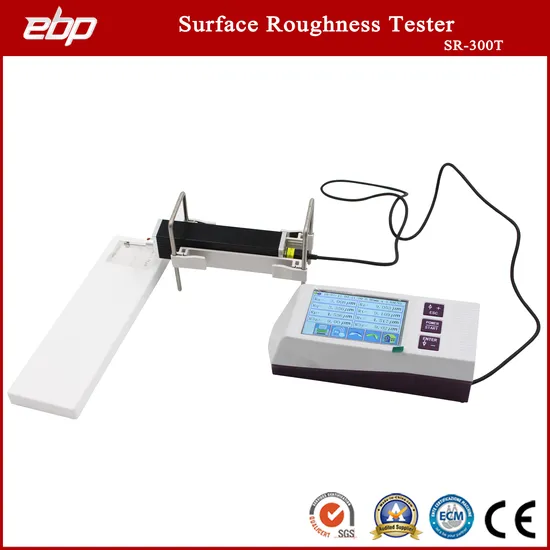

The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step
| Measurement Range | The Z axis (vertical) | ±80μm/±160 µm(enhanced model) |
| The X axis (Transverse) | 17.5mm |
| Resolution | The Z axis (vertical) | 0.01μm/±20μm |
| 0.02μm/±40μm |
| 0.04μm/±80μm |
| 0.08μm/±160μm |
| Measurement item | Parameter | Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2 |
| Standard | ISO, ANSI, DIN, JIS |
| Graphic | Bearing area curve, Roughness profile, Primary profile |
| Filter | RC, PC-RC, Gauss, D-P |
| The sampling length(lr) | 0.25, 0.8, 2.5mm |
| Assessment length(ln) | Ln= lr×n n=1~5 |
| Sensor | Measuring method | skidded |
| Stylus tip | Diamond, 90 cone angle, 5μmR |
| Force | <4mN |
| Skid part | hard alloy, skid radius of curvature: 40mm |
| Traversing speed | lr=0.25, Vt=0.135mm/s |
| lr=0.8, Vt=0. 5mm/s |
| lr=2. 5, Vt=1mm/s |
| Return Vt=1mm/s |
| Accuracy | Less than ±10% |
| Repeatability | Less than 6% |
| Power supply | Built-in Lithium ion battery, Charger :DC5V,3200mA |
| Outline dimension | Main unit: 52*55*158mm drive: 23*27*115mm |
| Weight(main unit) | Around 400g |
| working Environment | Temperature: - 20ºC ~ 40ºC
Humidity: < 90% RH |
| Store and Transportation | Temperature: - 40ºC ~ 60ºC
Humidity: < 90% RH |
