High Quality with CE Certificate Knee Type Vertical Horizontal Milling Machine X36b

Product Description

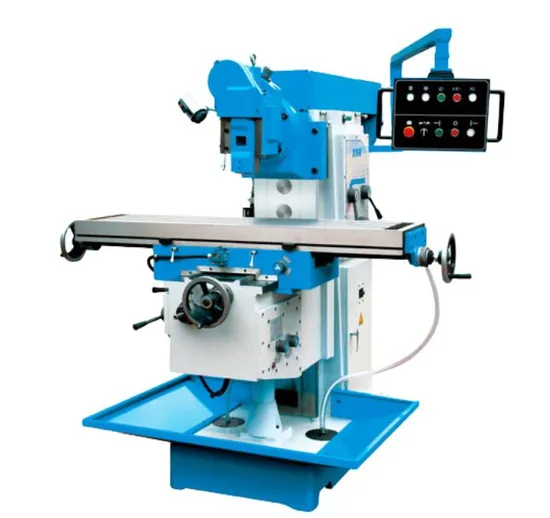

Knee Type Milling Maching X36B

Milling machine is a vertical-horizontal milling machine, vertical milling head is a patent milling head contains plug function, is a multi-purpose machine, three axes automatic feed, torque power strong, three axes guideways hardened.
Rectangular guideways on bed and Z axis High stability and rigidity conversion of vertical / horizontal milling.
Specification:

Model No.	X36B
Item No.
Specifications
Table size	360x1500 mm
Table travel	900x250 mm
Milling vertical shaft inner cone hole	ISO40
Difference from spindle axis to guideway	405 mm
Slotting maximum traveling range	105 mm
Inserts works as extreme breadth	16 mm
Slotting stroke number of times	≤80
Stroke number of times and transformation progression	with variable speed and milling horizontal axis series are the same
Horizontal axis turning	positive rotation
Tool rest rotation angle	±90 °
Slotting tool cutter bar center to milling machine guide rail distance	525
The mounting dimensions	With milling machine main axle joint taper	IS050
	The mill subscribes the vertical guide rail angle	55°dovetailed way, rectangular guideway
	Milling machine vertical guide rail width	260,280,300,320,360
Horizontal axis center altitudeTable size	0-480
Spindle
Spindle speed range	60-1800
Horizontal axis hole	ISO50
Dimension of package
Main Motor power	4 kw
Overall dimensions	2300x2000x2000 mm
Feeding motor	1.5 kw
Feeding speed	30,55,100,190,350,630,2000

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
