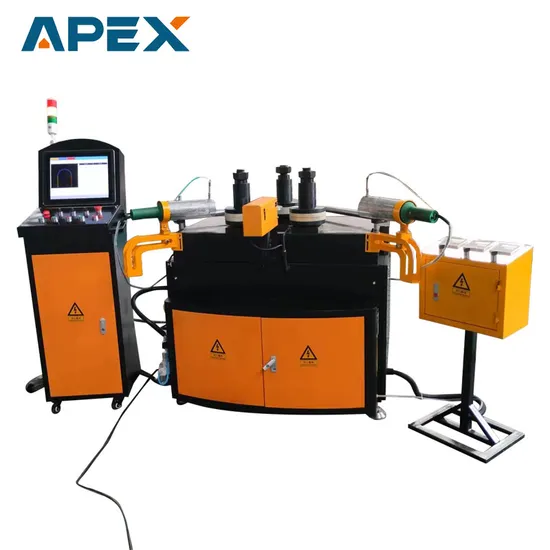

PVC Windows Plate Bending Machine Cheap Price Fully Automatic Plastic PVC Pipe Bending Machine

Product Description

Power supply	600/450/380V/220/50HZ/60HZ
Input power	7.5KW
Working pressure	0.2Mpa
Min. diameter of bending	100mm
Max. width of profile	H150×W180
Max. diameter of rolls	230mm
Lower shaft center-diamensions	380mm
Hydraulic cylinder pressure	20T
Roller-holding shaft diameter	65mm(40 chromium)
Rotation speed of shaft	1-8r/min
Y-roller cylinder positionin accuracy	±0.1mm
Max. Y-roller travel	0-200mm
Torque	8000N
Size of machine	1570*1000*1275mm
Weight of machine	1600kg

After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

---
