US$8,500.00-10,500.00
|
1 Set
(MOQ)
|
Basic Info.
Placing Form of Template
Vertical
Die Cutting Tool
Steel Blade
Computerized
Non-Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Stickers Products
Optional Part
Hot Stamping,Lamination,Sheeting
Machine Color
Grey or Customized
Machine Warranty
One Year
Voltage
380V 50Hz or Customized
Feeding Roll Width
320mm/420mm
Transport Package
Wooden Case
Specification
320G and 420
Production Capacity
400sets/Year
Product Description

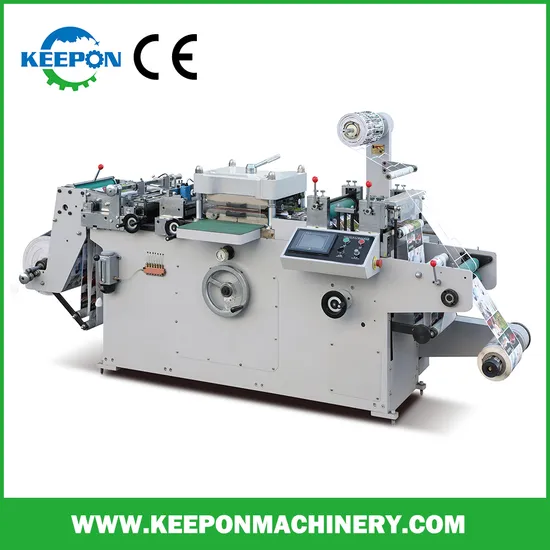

Automatic Adhesive Label/Roll Paper/ Film Tape Die Cutting Machine with Hot Foil Stamping
Features:
This label die cutting machine or label die cutter adopts flat bed high accurate die cutting,label feeding and sheeting controlled by touch screen micro-computer,the two sides of printed mark and longitudinal tracked by three photoelectric eye.Die cutting rewind waste edge side paper,sheeting can finish at one time.It is suitable for die cutting paper label,film label and holographic label.etc.This machine and label slitter is necessary auxiliary label die cutting machine for the flexo printing machine or continuous screen printing machine.
Optional parts:laminating device,hot foil stamping unit,punching unit,optical-fiber tracking photocell for hologram label etc
Technical Parameter:
| Model | WQM-320G | WQM-420 |
| Die cutting speed | 20-300m/min | 20-170m/min |
| Max. unwinding diameter | 500 mm | 500mm |
| Max. width of paper | 320 mm | 420mm |
| Max. cutting width | 300 mm | 400mm |
| Max. cutting length | 300 mm | 400mm |
| Positioning precision | ±0.1 mm | ±0.1mm |
| Total power | 3.5kw | 4.5kw |
| Power supply | 220v±10% | 380v |
| Overall dimensions | 2.6X0.99X1.4M | 2.7X1.05X1.5M |
| Weight | About 1700kg | About 2300kg |
Our Plant View:
Packing And Shipping:
Clients And Exhibition:
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.
2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
3.Q: What is your delivery time?
A: 30-50 days usually
4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.
>>
