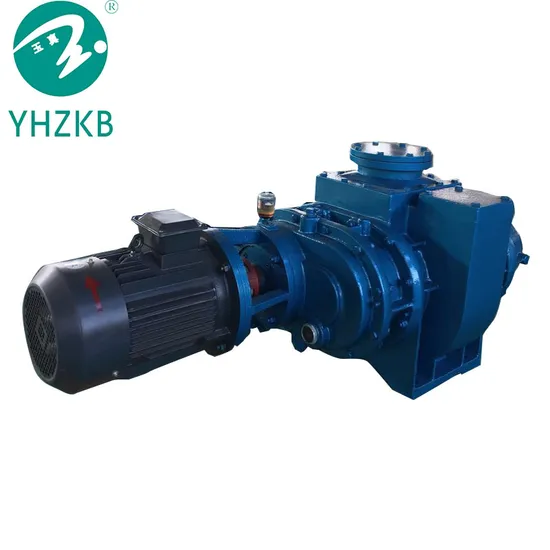

Booster Pump for Vacuum Coating Machine

Product Description

Model	Suction capacity (L/S)	Limit vacuum (≤Pa)	Speed (rpm)	Motor Power (kw)	Inlet Dia. (mm)	Outlet Dia. (mm)	Weight (Kg)	Recommended backing pump model
ZJ-70	70	6x10-2	2780	1.5	80	50	87	2X-8
ZJB-70		5x10-2					100
ZJ-150A	150	6x10-2	2900	3	100	100	198	2X-15
ZJB-150		5x10-2					215
ZJ-300	300	6x10-2	1450	4	150	150	490	2X-30A
ZJB-300		5x10-2					480
ZJ-600	600	6x10-2	2900	5.5	150	150	490	2X-70A
ZJB-600		5x10-2					503
ZJ-1200A	1200	6x10-2	1450	11	300	300	1550	2X-70A (2sets)
ZJB-1200		5x10-2			250	250	1580

JZB Roots vacuum pump
1. Construction features and working principle of the pump:
Model ZJ Mechanical Booster Pump, also known as a Roots pump, is a volumetric pump.
It employs a pair of rotors, identical and in 8-figure with certain clearance between them
in the pump housing, rotating at the same speed in opposite directions to perform
function of suction and discharge of gas. The two rotors are supported by rolling bearings
in the end covers of the pump, rotating at high speed and are kept at a
fixed relative position by a pair of timing gears. The end clearance between rotors and
end covers are fixed by adjustable metal shims between the bearing housings and the
end cover at the fixed end, which ensures one-direction expansion of the rotor when
temperature rises during its operation.
Four sets of inner seals (also known as piston ring) in the two end covers prevent lube oil
entering into the pump housing. The shaft seal at the front-end cover, also called as
framework oil seal or shaft seal, prevents leakage of air into the pump housing.
In order to reduce temperature of the pump, all models of pumps (expect the two
smallest models) are equipped with a gearbox cooler and front-end cover cooler.
Power is transmitted through a coupling or V-belt from the motor to the driving shaft of
the pump and then through synchronizing gears to the driven shaft
Product's Application
Product Display
Company Power

FAQ
1.Q:Are you a manufacturer or trading company?
A: We are a professional vacuum pump manufacturer with over 32 year experience. We have two factories now which cover more than 33333 square meters,we have rich experience in solid liquid industry , Welcome to visit our factory at your time.
2.Q:Do you have minimum order quantity request?
A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.
3.Q:Do you have certificates?
A: Yes, we have CE, ISO,SGS.etc. certificates.
5.Q:How to pay?
A: Usually by T/T.
6.Q:How to pack the products?
A: We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.
7.Q: What about your delivery time?
A: It depends on your pump quantity. Generally 15 days after we receive the prepayment. We will confirm you again when we start to produce.
8.Q:How to install after the equipment arriving destination?
A: We will sent the operating instruction with goods to you.Please strictly follow the instructions for installation
9.Q: How long does your product quality warranty last?
A: 12 months for all our products against any non-artificial quality problem since the product leave our factory.
10.Q: What will you do with quality complaint?
A: We have a complete set of microcomputer controlled testing system(All products are subject to tested before delivery. No product that failed performance test leaves our factory

---
