Hot Sale Self Loading Concrete Mixers Hy160/Hy200/Hy220/Hy400/Hy420 Cheap Factory Price

Product Description

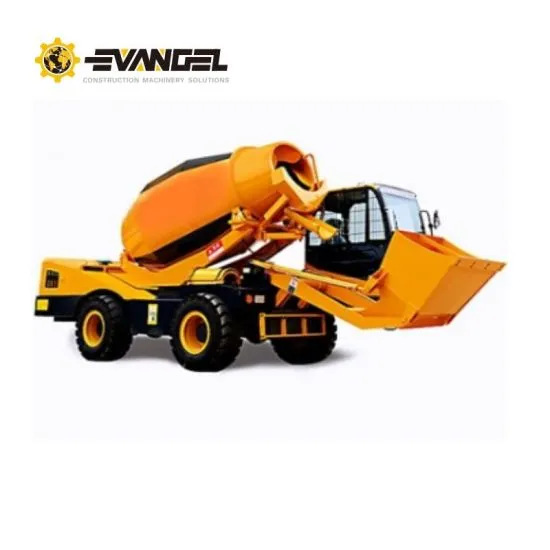

Hot sale self loading concrete mixers HY160/HY200/HY220/HY400/HY420 cheap factory price The HY-220 self loading concrete mixer has a discharge capacity of 2.2M3, using four wheel drive, which can independently complete feeding, weighing, pumping, mixing,
transportation, unloading six major functions. It is suitable for concrete transportation and site construction operation, which can greatly improve the production efficiency, reduce the time and cost.
The mixer consists of chassis, transmission system, hydraulic system, frame, mixing tank, charging and discharging device, water supply system, operating system, human ladder etc..
The front end of the mixing tank is connected and installed with the reducer on the front of the frame, and the back end is supported by two riding wheels installed in the back of the frame.

Net weight	7100 KG
Gross weight	12000KG
Tilt angle	0.3
Travel speed	High speed: 0-30KM/H; low speed: 0-9KM/H
Minimum turning radius	6.5M/R
Transmission mode	Full hydraulic transmission
Drive mode	4-wheel drive
Control mode	Hydraulic control valve
Brake mode	Air Brake
Chassis	Off-road
Tyre model	20.5-16
Overall dimensions	6252*2200*2892mm

1. Mixing Drum

Loader bucket capacity	0.6m3
Output capacity	2.2M3
Bank Angle	16 °
Rotation Angle	19-21R/min

2. Engine

Type	Yunnei
Rated Power/RPM	76KW/2400RPM
Max. Torque/RPM	460N.M/1400RPM
Cylinder	4
Starter	Electric
Cooling type	water cooling

3. Feed mechanism

Weighing model	computer control
Concrete Standard	C15.C20.C25 C30
Accuracy	Cement	≤±2%/time
	Relative Error	≤±3%/time
	Water	≤±1%/time
	Additive	≤±1%/time
	Admixture	≤±2%/time

4. Chute

Swing Angle	≥60°
Angle control	Hydraulic
Long Size	176cm
Short Size	40cm

---
