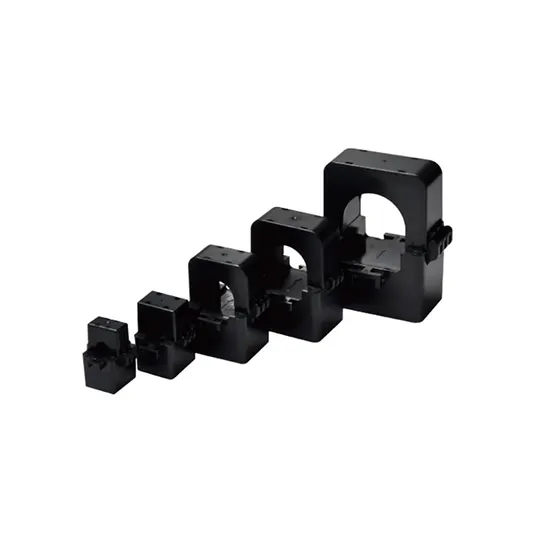

Measurement CT for Electrical Loading Monitoring Clamp Permalloy Split Core Current Transformer

Product Description

Detailed Photos

Product Description
Normal use and installation conditions:
Installation location: indoors
Ambient temperature: -20ºC~+75ºC
Environmental humidity: It is recommended that the relative humidity should not be greater than 80%
Altitude: no more than 3000m
Atmospheric conditions: There is no serious pollution, corrosive or explosive media in the atmosphere
An environment without significant frequent vibrations and shocks
Storage temperature: -30ºC~+85ºC



General technical indicators

Technical indicators	Indicator parameters
Operating voltage	≤720V
Operating frequency	50~60Hz
Rated accuracy level	Equal to or better than 0.2 level
Rated overload current	1.2 times rated current
Rated short-time thermal current	60 times rated current @1sec
Insulation resistance	≥1M ohms@500Vdc
Power frequency withstand voltage	3KV@2mA\1min\50Hz
Product flame retardant level	UL94-V0
Insulation heat resistance level	E level
Applicable standards	GB20840.2,IEC/EN60044-1

Product Parameters
FAQ
1.Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
2.Q: Can I order samples?
A: Yes, we welcome to order samples to test and check the quality, you need to pay the sample fee and shipping fee.
3.Q: Does your factory have the design and development capabilities, can your factory accept customized products?
A: Our R&D department staff are experienced in the electrical industry with more than 10 years of experience. HEMEI also provides personalized services to customers, including OEM, ODM and OPM.
4.Q: How soon can I receive my order?
A: Customized products: Usually it takes 10-15 days. It depends on your design and quantity.
5.Q: How is your production management and quality control system?
A: All our product processes follow ISO9001. There are technical instructors for each process. QC supervisors will regularly check the production. We will conduct product performance tests during production and conduct comprehensive quality tests when the products are completed.

---
