Product advantage:
Battery system: Long range energy saving battery.
Pedrail: 830 mm ground length, have good passing performance in different work environment.
Operation way: Manual control / pedal control / remote control, it’s very Simple, convenient and intelligent.
Steering mode: free lifting, tipping, 360 degree in-situ turning.
Multifunctional accessories: fruit picking, electric pruning, bagging, spraying system, transportation, etc.
Drive motor and hydraulic system: imported European high standard drive hydraulic electrical unit, guarantee of service life and quality.
Battery power: Zero emission, no noise, no vibration of the machine. It has a very good protective effect on peach and other fruits.

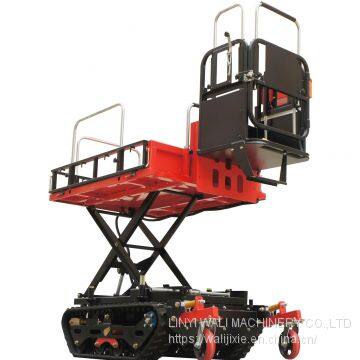

Model 3BD-350
Overall size 2010*1160*1240 mm
Net weight 600 KG
Electric motor DC-24V/1500W*2EA (3000W)
Battery Lead acid battery DC-6V/200AH (4 series connection)
Applicable voltage charger 12/24V
Max transporter weight 350 KG
Max lift weight 240 KG
Operation way Manual control / pedal control / remote control
Rubber perdrail size 180*60*45
Lift type Hydraulic lift
Max speed 2.6 km/h
Charge time 8-10 h
Work time Full load working time 3h
Work platform max height 1250 mm
Optional accessories Electric scissors, electronic scale, spraying system
>>
