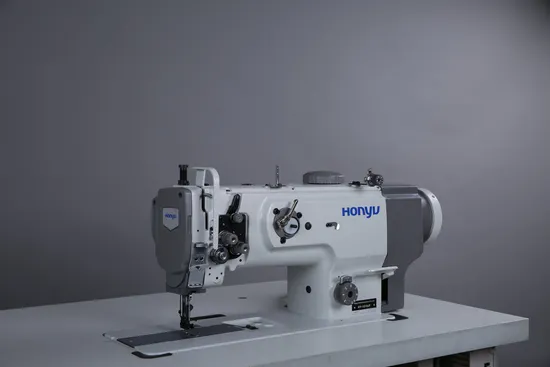

HY-1510JF Direct Drive, Single Needle Compound Feed Sewing Machine

Product Description

WALKING FOOT LEATHER SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR SOFA
HY-1510J Direct drive, single needle compound feed sewing machine

Model No.	HY-1510JF
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2500 s.p.m
Bobbin diameter	Ф28mm
Applied needle	DP×17 #18-#23
Thread size	Maximum thread 9 strands nylon
Max stitch length	9mm
Max alternating presser foot	6.5mm
Max presser foot lifting height	16mm
Presser foot lifting function	Presser foot lifting by air
Auto oil system	√
Operation space	255×103mm

Product Description:
1. Internal direct drive motor with low vibration, low noise and low energy consumption.
2. It can adjust the alternating amount of the presser foot by manual through the knob when the sewing reaches the position between up and down step, maximum height is 6.5mm, effectively reduce dense needles, broken thread, broken skin problem and form the prefect stitch.
3. Powerful and effective feeding system with alternating presser foot, feed dog and needle feeding guarantees trouble-free and displacement free of the fabric, ensuring the higher sewing quality.
Typical Field of Application:
Pre sewing and abutted seam sewing process for sofa, office chair, leather products and outdoor goods.
