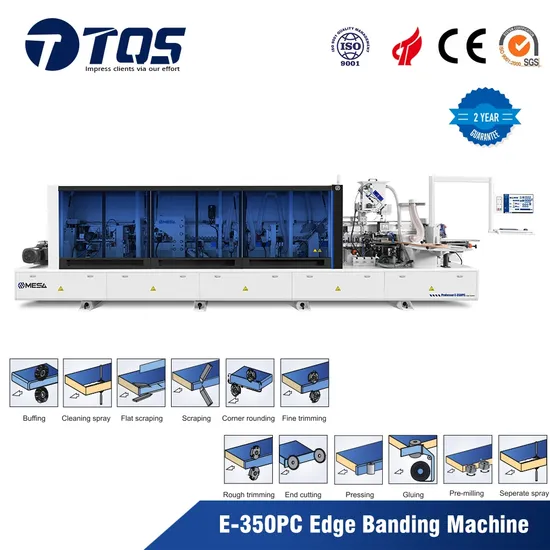

Edge Banding Machine Woodworking Machinery Automatic Edge Bander

Product Description

Model	E-350PC
Board length	≥150mm	Input voltage	380v
Board width	≥60mm	Input frequency	50HZ
Board thickness	10~60mm	Output frequency	200HZ
Tape width	12~65mm	Total motor power	12.5Kw
Tape thickness	0.4~3mm	Air pressure	0.6pa
Feeding speed	16~23m/min	Phase	3
Workbench height	900mm	Dust exhaust hole	125mm×5
Dimension	7000*750*1730mm	Weight	3600kg

Machine Body 1.Machine body has been solid welded by the laser cutting steel, and did the heat treatment, to ensure the structure stability.
2.Main beam adopts Aluminum profile structure with electrical elevating, which is uniform and rigid.
Computer Control System 1.Adopts industrial PC control system
2.With humanity controlling interface, the operator can adjust all the units through one click.
3.Come with WIFI function, which allow the remote debugging.
Separating Spray
Before the pre milling function, the machine equipped with one separating spray device, which will isolate the dust and adhesive on the board surface, which will be easy to remove them.
Pre-milling Structure
1.Two pieces 2.2KW high speed motor, to do the joint trimming before the gluing, to reduce the adhesive mark on the edge.
2.Through adjusting the feeding fence position, we can adjust the milling amount.
3.Two pieces PCD cutter:φ125mm x φ30mm x H35mm
4.Come with dust blower device
5.With individual dust exhausting hood
Pre-heating Lamp
Considering the environment affection, the machine come with the pre-heating lamp, which can heat the edge before the glue application, so can enhance the banding performance.
Adhesive pre-melting device
The pre-melting device adopts level sensor to control the quantity of the melting adhesive, to achieve the adhesive saving purpose. Meanwhile, it can suck up the adhesive automatically.
5 Rollers Type Tape Pressing Unit 1.In order to achieve the stable band sealing, the machine adopts 6 rollers band pressing unit, with manual adjusting.
2.The driving roller diameter as 100mm, the 4 pieces driven rollers, two of them with tape edge.
Corner Rounding Unit 1.Two pieces 0.3kw high speed motor with 200Hz frequency and 12000rpm rotation speed.
2.Adopts flat linkage mechanism
3.Can adjust the corner round mode on the touch screen according to the working requirement.
Cleaning Spray Device
With the special cleaning agent spray device, which can help the buffing unit to clean the leaking adhesive on the board surface.
Buffing Unit 1.Considering the dual-glue pots structure, the machine comes with double buffing unit, to meet the different color polishing.
2.Can do the board edge polishing, and remove the leaking adhesive mark on the surface.
Automatic Lubrication Pump
Which will do the automatic lubrication to the linear guide way on the end cutting unit, to extend the using life of the structure.
Electrical System 1.Input power: 3~380v,50hz
2.The PLC and inverter is the INOVANCE brand from China, which the high-end one in domestic market.
3.Come with phase sequence protection device.
4.Electrical component is SIEMENS brand from German

E-240 Edge Banding Machine	E-220 Edge Banding Machine

1. What's your guarantee? Which type after sale service can you provide to us?All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently. After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
