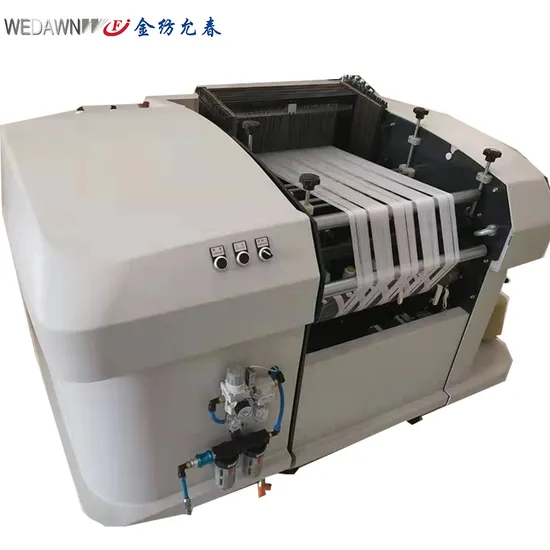

Wtr598-24inch Automatic Thick Sampling Loom Testing Fabric Instrument Textile Sample Loom

Product Description

WTR598-24inch type automatic rapier weaving sample machine is matched with a new generation of shuttleless loom weaving machine equipment, key parts are imported. The length of the warp knitting machine and the shape and size of the shed are adjusted according to the scale of the new rapier loom. The difference between the sample and batch products is solved. It is suitable for small sample weaving and product development of cotton, wool, silk, hemp, chemical fiber and blended fabric.

Please refer to our details of our machines:
The fabric weaving is less than 3meter , matching with the bellowed simple warping shelf
Please check the bellowed details specification of our machines:
Structural features:servo motor Weft insertion,the rapier head can meet the needs of all kinds of fabrics, such as 5S-200S cotton, polyester / cotton, 20-1000D chemical fiber, industrial fabric, metal fiber and other fabrics. Let off:stepper motor driven warp warp tension device, automatic adjustment of electronic type, the same fabric yarn or yarn tension change with axial air rate is less than 10%, can maintain the stability of weaving
Shedding:
cylinder pneumatic control element, dobby shedding mechanism, can control 24 pages of heald frame (including 2 pages), and it is easy to assemble and disassemble. The fully mechanized frame is made of die drawn aluminum alloy profile, hard oxidation and abrasion resistant, sliding pair is wear-resistant material, and it is not easy to wear and deform.
Shredded wire: you can choose stainless steel openings or closed shredded wire according to customer's needs, or plastic or ordinary iron shredded wire
Beating up:servo motor beating up, suitable for high count and high density fabric and special fabric. beating up force, stability and longer service life, and can produce higher density fabric.
Coiling:
step motor drive, electronic control coiling, weft density range 10~300 / inch, weft density within 100, allowed error of 1
Central console hardware:
PC computer with touch function, pre installed win8 system, and industrial touch screen. Test part:input, under the bottom of this interface, shows the current state of each sensor, proximity switch and other signals, output, run the test program, double click the corresponding button, and the corresponding output will have actions. Operation panel:fabric sample, according to the need to press the corresponding button below the button board, lights, there will be a corresponding action; as a result of the open WINDOW operating system compatible with a variety of established on the platform of WINDOW software, such as: fabric, CAD fabric simulation software (if the optional industrial touch the screen is temporarily unable to achieve this function)
Please check our production lines as bellowed:
Our textile exhibition in Indonesia, in shanghai,china,In india and our Suzhou china office for your further perusal.
FAQ :
1)Are you manufacturer:
Yes, we are manufacturer of water jet loom, air jet loom, rapier looms,twisting machine,etc. textile weaving looms. And at present we also increased the mask making machines series lines.
2)Do you attend the exhibition every year?
Yes, we attend the india, indonesia,Parkistan,shanghai china,Uzbekistan,Turkey etc.textile exhibition every year. 3) Do you have office in foreign market?Yes,we have office in suzhou,china; in india, in indonesia, welcome to visit us.
4)What is the delivery time?
We can deliver the looms within one month 300 sets.
5)Do you already register in India government?
Yes, already become the member of ATUFS india.
6)Do you have aftersales team?
Yes, we will arrange the after sales teams on the door when delivered the looms on your side. Any problems of prompt time is within in 2 hours.
