CNC Double Head Cutting Machine with 500mm Saw Blade

Product Description

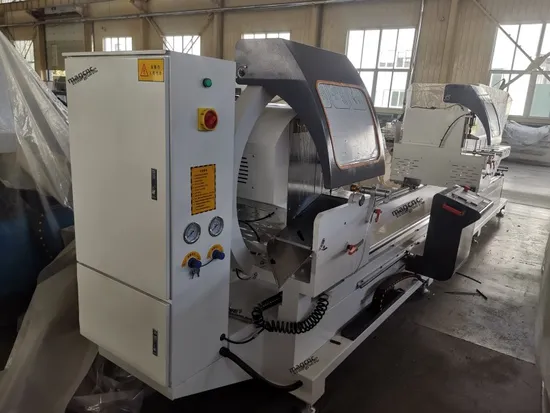

CNC Precise Double-head Cutting Saw LJZ2S-500*4200
Product Description
1). Imported carbides blade is of accurate processing and high endurance.
2). High precision main shaft to keep saw blades running stability.
3). Pneumatic-hydraulic damp device to keep the stable feeding.
4). The feeding system adopts the imported linear guide pair,with high accuracy and stability.
5). High precision linear bearing to keep the re positioning precision.
6). Auto turnable machine head, two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.
7). Vertical and horizontal clamping cylinder.
8). Spraying cooling system.
9). Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working, which moved by motor.
10). Auto-opening shield make the operation safety.
11). This machine uses the numerical control technology, profiles different specifications can be completed automatically under the expected size. Product Parameters

Power supply	380V 50Hz
Main motor power:	5.9kw
Air pressure	0.5-0.8M pa
Air consumption	200L /min
Main motor rotation speed:	2840r/min
Min/max Cutting length	400-4200mm
Saw blade dimension:	Φ500×Φ30
Cutting angle:	-45 ° - 67.5 ° 90 °
Cutting W x H	135x200mm(Suitable for all three angle)
Cutting profile surface roughness	Ra12.5µm
Moving head travel speed	0.1-0.5m/s
Size: (width × high × long)	5700*1650*1520mm
Weight:	1613Kg
