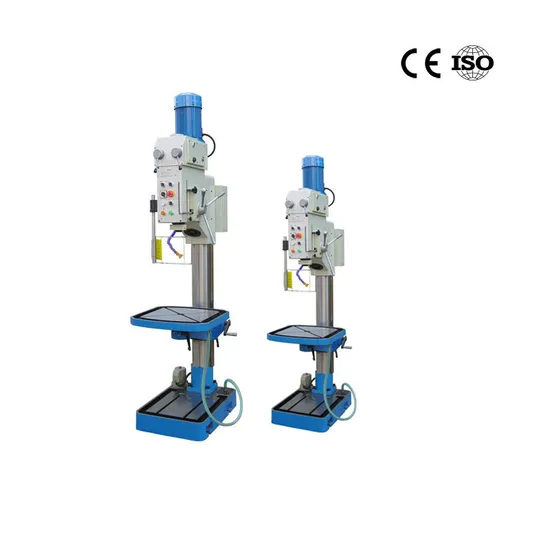

Precision Vertical Drilling Machine Z5040 with Movable Table Senmo Weida Wddm 40mm

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
Z5040, Z5040E
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Spindle Travel
180mm
Distance Spindle Center to Column Surfac
350mm
Max.Distance Spindle Nose to Worktable
50-770mm
Spindle Taper
Mt4
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900

Product Description

Vertical Drilling Machine Z5040,Z5040E Feature
·Drilling, tapping, boring, reaming
·Gear driving and strong cutting power
·2 speed strong power motor, wide range speed change
·Electric system according to IEC standard, equipped with short cut and overload protection
·Automatic tools ejectors, equipped with cooling system and tapping mechanism
·2 steps power feed 0.1-0.2mm/rev
·Working table can be rotated 180° and can be tilted 45°

Specifications Z5040/Z5040E
Machinery/Electronic power feed
Max.drilling dia. and tapping capacity Ø40/M24mm
Spindle travel 180mm
Distance spindle center to column surface 350mm
Max.distance spindle nose to worktable 50-770mm
Distance spindle nose to base 1215mm
Spindle taper MT4
Spindle feed range 0.1,0.2mm/r
Spindle speeds range 50-1450rpm
Spindle speed steps 18
Diameter of column 150mm
Worktable size 560x560mm
Dimensions of base 735x510mm
Cooling pump 75w
Motor power 1.5kw
Packing size(LxWxH) 227x58x110cm
N.W/G.W 500/600kg
20' container Q'ty 20sets

Standard Accessories Optional Accessories
Draw bar L-type table
Adapter Depth indicator
Taper shank for drilling chuck Vice
Drilling chuck
Tilted wedge
Spanner
Oil gun


Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
