Cryogenic Oxygen Plant Small Air Separation Plant

Product Description

Cryogenic oxygen plant small air separation plant
Technical Parameters
O2 output: 50Nm3, 100Nm3, 150Nm3, 180Nm3, 350Nm3/h
Grade: industrial oxygen or medical oxygen
Purity: 99.6%
N2 gas output: 50Nm3-350Nm3/h
Liquid N2 output: 10L-300L/h
Purity: 99.999%

Model	O2 Nm3h/Purity%	N2 Nm3h/Purity%	Working Period
KDON-50/100	50/99.6%	100/<10ppmO2	6 months
KDON-100/200	100/99.6%	200/<10ppmO2	6 months
KDON-150/600	150/99.6%	600/<10ppmO2	6 months
KDON-170/400	170/99.6%	400/<10ppmO2	6 months
KDON-350/800	350/99.6%	800/<10ppmO2	12 months
KDON-550/1200	550/99.6%	1200/<10ppmO2	12 months
KDON-1000/1000	1000/99.6%	1000/<10ppmO2	12 months

Purchasing Guide
If you need a small size air separation plant, please tell us your specific requirements and environmental parameters, so that our engineers and sales team can make professional quotations accordingly.Please advise:
1. altitude, temperatures (highest temperature in summer and lowest temperature in winter), humidity, earthquake intensity and wind speed;
2. voltage including high voltage and low voltage;
3. your requirements on the output and purity of liquid oxygen or oxygen gas, as indicated below:

Description	Output (Nm3/h)	Purity	Ex-Cold Box Pressure (Barg)
Gaseous Oxygen		%
Liquid Oxygen		%
Gaseous Nitrogen		≤ ppm O2
Liquid Nitrogen		≤ ppm O2
Liquid Argon		≤ ppm O2
		≤ ppm N2

4. for industrial use or medical use
5. other information

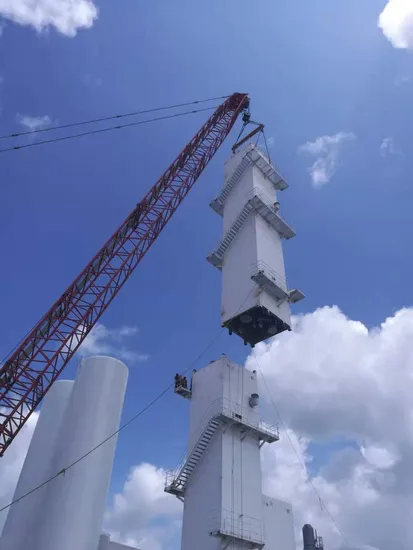

Product Photos
Customer List NoCustomer nameProduct modelSet1Export to Turkey350T PD Air Separation Plant12India Ramsarup Lohh udyog150TPD Air Separation Plant1

3	India Goyal MG Gases Pvt. Ltd.	100TPD Air Separation Plant	1
4	India Goyal MG Gases Pvt. Ltd.	200TPD Air Separation Plant	1
5	India Goyal MG Gases Pvt. Ltd.	105TPD LIQUIFIER Cold Box	1
6	BOC India Limited	MAIN HEAT EXCHANGER	1
7	BOC India Limited	SUB COOLER	1
8	BOC India Limited	BATH TYPE REBOILER CONDENSER	1
9	Export to Turkey	350T PD Air Separation Plant	1
10	Indonesia	KZO-50 Air Separation Plant	1
11	Indonesia	KZON-50/100-2 Air Separation Plant	1
12	Iran	KZON-150/600 Air Separation Plant	2
13	Iran	KZON-150/600 Air Separation Plant	1
14	Burundi	KZON-50/100-2 Air Separation Plant	1
15	Syria	KDONAr-170Y/100Y/3 Air Separation Plant	3
16	Vietnam	KDON-1000Y/(1000Y) Air Separation Plant	1
17	Vietnam	KDON-1000Y/(1000Y) Air Plant	1
18	Vietnam	KDONAr-3000Y/2000Y/100Y Air Plant	1
19	India	KDONAr-3500(110Y)/2500(75Y)/100Y Air Plant	1
20	Pakistan	KDONAr-2000Y/1000Y/65Y Air Plant	1
21	Malaysia	KDON-350Y/700 Air Separation Plant	1
22	Syria	KDON-160Y/220Y Air Separation Plant	1
23	Iran	KDONAr-2400/3600/70YAir Separation Plant	1
24	Tianjin China	KNDO-400Y(400Y)air separation plant	1
25	NECO IN INDIA	340TPD Air Separation Plant	1
26	BMM IN INDIA	425TPD Air Separation Plant	1
27	EIGL IN INDIA	3900Y Air separation plant	1
28	Mexico	5000Y Air separation plant	1
29	Vietnam	KDON-1500Y/1500Y Air separation plant	1
30	Lanzhou University in China	KLN-30Y Liquid Nitrogen Generator	1

Cryogenic Air Separation Plant
Basic Principle & Processes
The basic principle of air separation is to use the different boiling points of the components of liquefied air to separate them. To this end, the air separation plant consists of the following processes:
(1).Filatration&Compression
(2).Purification
(3).Cooling Air to Liquefaction Temperature
(4).Refrigeration
(5).Liquefaction
(6).Rectification
(7).Hazardous Substance Removal

Necessary Conditions before Starting the Air Separation
1.The construction of all piping, machines and electric devices has been completed and accepted.

2.The construction of all piping, machines and electric devices has been completed and accepted.
3.All safety valves have been set and put into service.
4.All the manual valves and pneumatic valves should act flexibly and all the adjusting valves should be commissioned and calibrated.
5.All the machines and instruments are in good performance and are prepared for service

6.The program control system of the molecular sieve purifier have been commissioned and ready for service.
7.Power supply is ready.
8.Water supply is ready.
9.Instrument air supply is ready.

WHAT WE CAN SUPPLY
Hangzhou Chuankong General Equipment Co.,Ltd. is a wholly owned subsidiary of Sichuan Air Separation Plant Group Company-the second largest gas equipment producer in China.Which have more than 40 years of manufacturing experience.

We specialize in producing air separation plants, CO2 recovery plants, cryogenic liquid storage tanks, ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.

---
