Split Type Homogenizer Mixing Machine Shampoo Body Lotion Sun Cream Vacuum Emulsifying Mixer

US$8,800.00 1 Set (MOQ)

Basic Info.

Model NO.
HWVM-XDL-300L
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical, Cosmetics/Toothpaste
Certification
CCC, CE
Condition
New
Control System
PLC or Button Control
Cooling Method
Water Cooling
Heating Method
Electric Heating or Steam Heating
Main Material
Stainless Steel, SUS304/SUS316
Mixing Capacity
200-500L
Mixing Drum Shape
Drum
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
With Cooling System
Working
Shear Mixer
Lift System
Hydraulic Lifting Lid
Mixing System
Top Scraper Stirrer
Mixing Speed
0-65rpm
Emulaifier System
Botton/Top Homogenizer
Heating System
Steam/Electric Heating
Cooling System
Water Cooling
Homogenizer Speed
0-3600rpm
Vacuum System
up to -0.085apm
Emulsifying Products to Mini One
<0.018um
Motor Brand
Simense /ABB
Materials
Stainless Steel 304 & 316L
Premixing &Heating Tank
Water Tank and The Oil Tank
Discharge Sysetm
Automatic or Manually
Control Panel
Press-Button Control /PLC Contro
Volume
10-10000L
Transport Package
Wooden Case
Specification
4.5CBM
Trademark
HENWI
Origin
China
HS Code
8479820090
Production Capacity
30-50 Set/Month

Product Description


HENWI TECHNOLOGY

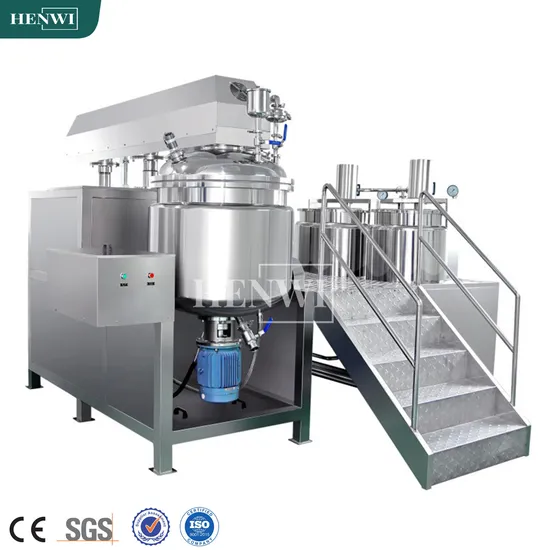

Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard Product Description Hydraulic lifting vacuum emulsifier mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Standard configuration
--Emulsifier, water phase tanks, oil phase tank --Three-layer tank, steam or electric heating --Variable frequency speed scraper mixing --3600rpm high-speed homogenizer, fineness 0.2-5um
--Vacuum pumps and sync solenoid valves
--Stainless steel platform ans stairs
--Button or HMI operation
Working Principle The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank. Detailed Photos
Product Parameters
No. Model: HWVM-XDL-300L
1 Working capacity 300L
2 Heating method Steam/electric
3 Mixing type Upper frame oar scraper mixer
4 Mixing motor power 3KW
5 Mixing frequency inverter 3KW
6 Mixing speed 0-65rpm
7 Homogenizer type Bottom homogenizer with frequency inverter
8 Homogenizer power 7.5KW
9 Homogenizer speed 0-3000rpm950Hz)/0-3600rpm(60Hz)
10 Hydraulic lifting system 1.1KW
11 Vacuum system Water cycle vacuum pump, power:0.75KW
12 Control method Button control/HMI
13 Frequency inverter Delta/Panasonic/Mitsubishi
14 Electrical components Delixi
15 Jacket Double jacket,3 layers
16 Tank's materials Inner layer 5mm/SUS316Middle layer 4mm/SUS304Outer layer 3mm/SUS304
FAQ 1. Q: Are you a manufacturer or just a trading company? A: Foshan Henwi Technology company is one of the top technology-oriented machinery manufacturer in China. 2. Q: I am new in this field , can you recommend the whole production line? A: We can recommend you the whole production line depends on what products you will make: (1). If for paste or cream product, the following machine we will recommend you: RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (2). If for liquid product, the following machine we will recommend you: RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (3). If for Perfume, the following machine we will recommend you: RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc., (4). There are Full automatic production line and Semi automatic production line for your option.3. Q: What is your payment term? A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.4. Q: What is your delivery day? A: Our delivery day is about 15-30 days after receive the deposit.
