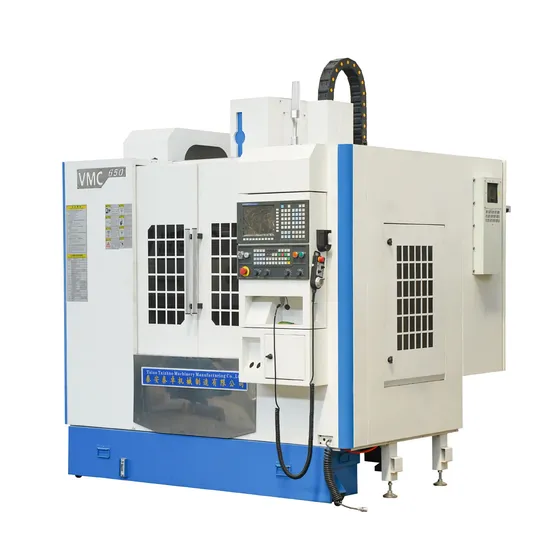

Vmc650 Japanese CNC Machining Center 3 Axis Vertical CNC Milling Machine

Product Description

VMC650 Japanese CNC Machining Center 3 axis Vertical CNC Milling Machine

VMC650 Parameters

Item		Unit	VMC650
Travel	X axis	mm	650
	Y axis	mm	450
	Z axis	mm	500
	Spindle nose to table	mm	90-590
Feed	X Y Z rapid feed	m/min	24
	Cutting feed	mm/min	1-6000
Table	Table size	mm	800X400
	Max.load	kg	550
	T slot	mm	3-16-90
Spindle	Speed	rpm	8000
	Spindle bore	mm	120
	Spindle taper		BT40
	Main motor	kw	5.5
Accuracy	Positioning Accuracy	mm	0.005/300
Machine	Size( L W H)	mm	2250X2000X2300
	Weight	kg	2800

Standard Configuration
GSK218M English language,Motor and driver
16T funnel type tool changer.
BT40-120 8000rpm speed
3 Axis linear guide
Lubrication, lighting, cooling system
Full protection of sheet metal system
1 Set tool holder with 8 pieces collects
380v 50hz 3phases
After-sale service :
1.Warranty period is one year, life-long after sale service.
2.Engineers are available to service machinery overseas.
3.Over 18 years experience in the CNC Machine industry.
4.Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
Company Information:
Our company main products Wheel Repair CNC Lathe Machine,Vertical CNC Lathe Machine,Slant Bed CNC Lathe Machine,Universal Lathe Machine,Pipe Threading CNC Lathe Machine,CNC Milling Machine,CNC Machining Center.
Package :
into standard wooden case with steel foot, and inside is waterproof protective cloth.

---
