Automatic Insulating Glass Flat-Pressing Production Line

Product Description

>>>Jinan Yuefeng Machinery Co., Ltd founded in 1983, a professional manufacturer specialized in producing PVC and Aluminum win-door equipment, curtain wall equipment and insulating glass equipments, we are the foremost pioneet in the win-door industry.>>>Yuefeng has a fully equipped machining center and highly qualilfied technicians. With the year of effort and the support from all strata of the society, we are becoming stronger. It is specializing in developing and manufacturing PVC & aluminum window and doors machines, curtain-wall machines, insulating glass machines, and milling machines. It is the most powerful champion and promoter in the win-door industry. Our products exported to Middle East, Russia, South Africa, Vietnam, India, srilanka us, and South America etc., and deeply favored by the customers.>>>"Profession, factualism, enterprising, innovation" is the enterprise culture in the company; Strengthened quality certification system makes our products in the leading position in the industry.

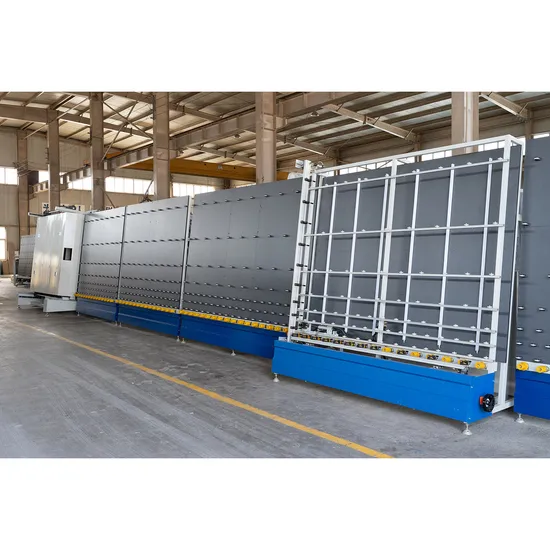

LBJ2000 Automatic Insulating Glass Flat-pressing Production Line



>> Three pairs brushes available for low-E glass and Coating glass.
>> PLC control two touch screen system, realize temperature, speed, output and machine trouble prompting, realize whole line under automatic control.
>> Realize glass pressing automatically outside or inside the press machine, produce insulating glass with two or three pieces original glass. It could produce insulating glass come from glasses that is same size or different size.
>> Full distance five step frequency control speed changing, the waiting section of line save time for whole process and improve working efficiency.
>> Action board can open, easy to examine and repair.
>> When glass is pressed, the front and back part of flat pressing machine will up the glass with lever-type arm and hand system, (mechanical position + mobile sucking system) all this will ensure no malposition.
>> Inside part of Wash machine, dry machine and the air dryer are both stainless steel production. It is elegant appearance and never rust.

Model	LBJ2000
Input voltage	380V 50Hz
Input power	24kw
Min. Glass dimension	450×280mm
Max. Glass dimension	2500×2000mm
Max. glass thickness	12mm
Working speed	8~45m/min
Overall dimension	18200×2400×2900mm

>>>.Glass Curtain Wall Machine.
>>>.Arc Bending Machine
>>>.Corner Crimping Machine
>>>.Glass Edging Machine
>>>.Glass washing Machine
>>>.Butyl Coating Machine
>>>.Two-component Extruder Machine
>>>.Insulating Glass Machine
>>>.End Milling Machine
>>>.Machining Center
>>>.Welding Machine
>>>.Cutting Machine
>>>.Insulating Glass Solution
>>>.Aluminum Window and Door Solution
>>>.Upvc Window and Door Solution





MORE>>>














1.Are your company a trading one or a factory?
Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.

---
