Small Scale Drawing Frame

Product Description

Product Description

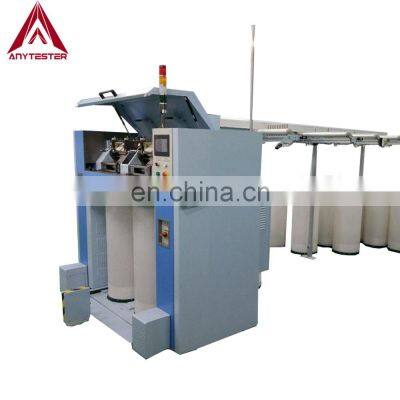

ApplicationSmall Scale Drawing FrameAT284 Small Scale Drawing Frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver. Details and Features1 Mini machine, save researching cost and easy to operate and maintain;2 Touch screen & PLC control;3 Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;4 Frequency converter of high efficiency to control roll speed;5 Doubling up to 8 slivers;6 Four-up-Three down drafting structure;7 Can coiler to output and coil cotton sliver in sliver can;Technical specificationModelAT284No. Of delivers2Distance between two delivers570mmNo. Of feeding ends3~8Feeding can sizeΦ400/500/600/800*900/1100mmFeeding typeWing overhanging type, positive feedingDrafting type4 over 3 with pressure barTotal drafting4.013 ~ 13.556UP roller diameterΦ36, 36, 33, 36mm, pressure bar Φ12mmBottom roller diameterΦ45, 35, 35mmLoading typeSpring loaded or cradle of pneumatic pressureCleaning typeRevolving cloth wiping top roller for upper cleaning: single apron traverse wiping roller cleaning. Fly is sucked into hopperthrough suction inletOutput can sizeΦ400/500*900/1100mmCan change typeIndividual motor drives chain and push rod. Feeding empty can while pushing out full canCan change motorFW11-6, D2/3, 0.25kW, 910 r/minFanFW12-2, D2/T3, 0.75kWMode of driveEnclosed drive, high speed gears in oil-bath, imported bearingBrakeElectrolytic capacitor brake or inverter brakeOperate modeTouch screen & PLC controlAuto stop motionPhotoelectric stop and mechanical stop motionPower supply3 phase AC380V 50Hz, 4kWDimensionsBreaker-drawing: 4200*2000mmFinisher-drawing: 3600*2000mmWeight2350kgOur CompanyPacking & DeliveryPakegingPakeging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.Contacting Us

---
