| Voltage/Current/Frequency | Measurement Range | Resolution | Accuracy | |
| Vrms(AC+DC) | 1 ~ 120Vrms | 0.001Vrms | ±0.1% of nominal voltage | |
| 120Vrms~400Vrms | 0.01Vrms | |||
| 400Vrms~1000Vrms | 0.1Vrms | |||
| Vpk | 1 ~ 1400Vpk | 0.01Vpk | ±0.5% of nominal voltage | |
| V(Crest Factor) | 1.0 ~ >2.8 | 0.01 | ±5% | |
| Arms（AC） | 10mV/A | 0~150A | 0.01A | ±0.1%±0.1A |
| 1mV/A | 1~2000A | 0.01A | ±0.1%±0.1A | |
| 65mV/1000A | 10~6000A | 0.01A | ±0.1%±0.2A | |
| A(Crest Factor) | 1 ~ 10 | 0.01 | ±5% | |
| Frequency | 42.5~57.5 (50Hz nominal) | 0.01Hz | ±0.01Hz | |
| 51~69 (60Hz nominal) | 0.01Hz | ±0.01Hz | ||
| 320~480 (400Hz nominal) | 0.01Hz | ±0.01Hz | ||
| Dips & Swells | ||||
| Vrms1/2 | 0 ~ 200% of nominal voltage | 0.01Vrms | ±0.2% | |
| Arms1/2 | depends on current clamps | 0.01A | ±1% | |
| Harmonic (IEC61000-4-7) | ||||
| Harmonic Number | 1 ~ 100(50/60Hz) (IEC61000-4-7) 1~12(400Hz) | |||
| Harmonic Voltage %f | 0.0 ~ 100.0% | 0.01% | ±0.1%±nx0.1% | |
| Harmonic Current %f | 0.0 ~ 100.0% | 0.01% | ±0.1%±nx0.1% | |
| THD | 0.0 ~ 100.0% | 0.01% | ±2.5% | |
| Phase | -180° ~180° | 0.1° | ± nx0.1° | |
| Power and Energy | ||||
| P, S, Q1 | Max. 6000MW | 0.1kW | ±1%±10 digits | |
| PF & cosФ | 0 ~ 1 | 0.01 | ±0.01 | |
| kWh, kVAh, kvarh | depends on nominal voltage and current clamps | ±1%±10 digits | ||
| Flicker (IEC61000-4-15) | ||||
| Pst(10min)/Plt (2 hrs) | 0.00 ~ 20.00 | 0.01 | ±5% | |
| Unbalance | ||||
| Voltage | 0.0 ~ 20.0% | 0.10% | ±0.1% | |
| Current | 0.0 ~ 20.0% | 0.10% | ±1% | |
| Voltage Phase | -360° ~ 0° | 0.1° | ±0.1° | |
| Current Phase | -360° ~ 0° | 0.1° | ±0.5° | |
| Voltage Transient | ||||
| Vpk | ±6000Vpk | 0.01V | ±15% | |
| Vrms | 10 ~ 1000Vrms | 0.01V | ±2.5% | |
| Min. Test Time | 5us | |||
| Inrush Current | ||||
| Arms | depends on current clamps | 0.01A | ±1%±5digits | |
| Inrush Duration | 1 ~ 32min selectable | 10ms | ±20ms | |
| Mains Signaling | ||||
| Signaling Frequency | 60-3000Hz | 0.1Hz | ||
| Relative V% | 0%-100% | 0.10% | ±0.4% | |
| Absolute V3s (3s average) | 0.0-1000V | 0.1V | ±5% of Nominal voltage | |
| Logger | ||||
| Recording | user-defined parameters for 4 phases at the same time | |||
| Memory | Data stored in Micro SD card, 32GB | |||
| Duration Time | 2 hrs to 1 year, depends on the recording items and time interval | |||
| Interval | 1s to 60 minutes | |||
| Monitor | ||||
| Support EN50160 in default or user-defined standard | ||||
| Channel(Voltage/Current) | 4/4 | |
| Voltage Range | 1-1000Vrms, 6000V transient voltage | |
| Current Range | depends on supplied current clamp | |
| PC software analysis | Yes | |
| Micro SD card(bulid-in) | 32GB | |
| Battery | Lithium ion, 5200mAh/>8h | |
| Time Synchronization | GPS/Beidou(option) | |
| interface | USB Host, LAN, WIFI | |
| WIFI App | ●(option) | |

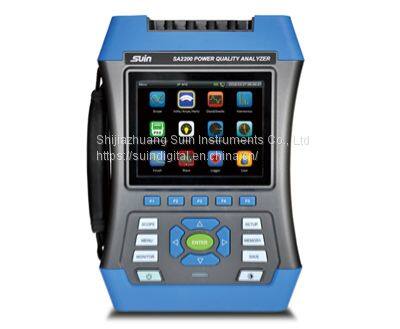

| Screen | 5.6' TFT LCD with resolution640*480(SA2200) | |
| Language | 14-Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese(Brazil/Portugal), Russian, Spanish (Latin/Spain), Turkish | |
| Dimension/Weight | 270*190*66mm/2.0kg | |
| Wire Combinatios | 1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE, 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT | |
| Electrical Safety | IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III | |
