Premium Silicon Carbide Pillar for Advanced Engineering Solutions

Product Description

Product Description Product Parameters

Materials & Item	Silicon Carbide Pillar ( Reaction bonded Sic Post )
	Technical Data	Unit
Max working Temperature	1380	ºC
Density	3.02	g/m3
Apparent Strength	<0.1	%
Bending Strength	250 (20ºC)	Mpa
	280 (1200ºC)	Mpa
Modulus of Elasticity	330 (20ºC)	Gpa
	300 (1200ºC)	Gpa
Thermal Conductivity	45 (1200ºC)	W/m.k
Thermal Explanation	4.5	K-1X10-6
Moh's Hardness	13	---
Acid & Alkaline resistant	Excellent	---
Remark: Data of properties listed above are typical results from test pieces and therefor should be used only as guidance.

Silicon carbide Pillar
We supply Silicon carbide SiC Products and Special Kiln Furniture. SiC Products are manufactured and strictly inspected to meet national stander and client's demand, it is more stronger and more fireproof than others. With strictly quality control and stable performance, it enjoy good reputation on market. Refractory Silicon carbide tube, Refractory Silicon carbide bar, Refractory Silicon carbide pipe, Refractory Silicon carbide beam, Refractory Silicon carbide square tube, Refractory Silicon carbide square pipe, Refractory Silicon carbide square beam, also including Refractory Reaction bonded Silicon Carbide beam, Refractory Silicon Carbide Pipe, Refractory silicon nitride tube, Refractory sic silicon carbide, Refractory RSiC thermocouple protection tube, what's more, there are high quality Good Heat Conductivity high temperature Silicon Carbide beam, Refractory SIC tube, Silicon Carbide Beam for Ceramic Furnace, Silicon Carbide roller Refractory Nitride Bonded Silicon Carbide, Refractory Silicon Nitride (Si3N4) Bonded Silicon Carbide.

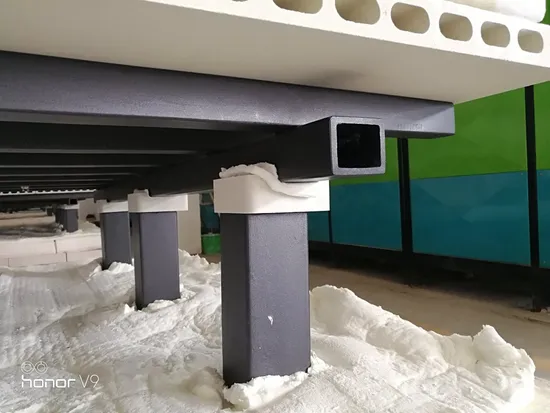

Detailed Photos
Our Advantages Features and Advantage:
1.Excellent thermal conductivity----Make your ceramic in excellent quality
2.More Clean than other materials----Easy to maintain your kiln production line.
3.Saving more energy----Reduce your cost.
4.Competitive Price----Save your cost

No	Point of advantage	Advantage can lead to:
1	Excellent thermal conductivity	Make your ceramic in excellent quality
2	More Clean than other materials	Easy to maintain your kiln production line.
3	Saving more energy	Reduce your cost.
4	Competitive Price	Save your cost

We produce and supply all the principal types of Reaction-bonded silicon carbide beam, Reaction-bonded silicon carbide, Oxide bonded silicon carbide roller rod and Silicon carbide components, a long lasting, rugged, dependable performer in many challenging environments. Our silicon carbide products are made to tight dimensional tolerances and have an excellent load-bearing ability at higher temperatures. Our Silicon carbide retains most of its mechanical strength at elevated temperatures and exhibits very low levels of creep, making it the first choice for load-bearing applications in the range 1300 to 1650oC (2400 to 3000oF).
Our Silicon carbide batts and Silicon carbide beam provide outstanding thermal shock resistance but unlike traditional ceramics, they also combine low density with high mechanical strength. Additionally, these products offer extreme hardness/abrasion resistance and outstanding chemical stability in aggressive environments.
Packaging & Shipping

---
