Yarn Evenness & Hairiness Tester

Product Description

Product Description

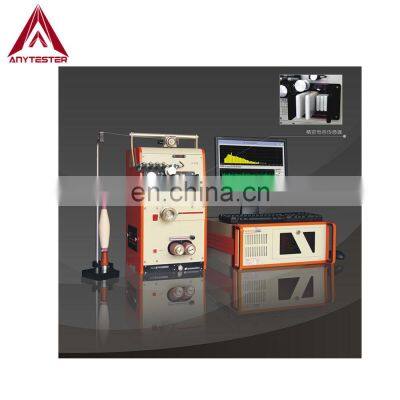

Product DescriptionYarn Evenness and Hairiness TesterHY0133B/H Yarn Evenness and Hairiness Tester is used to test evenness of yarns, roving, slivers which are spun with cotton, wool, flax and short synthetic fiber.Details and Features★Imported electronic speed regulating system feature with accurate rotation speed and high test precision;★Zooming the currently unevenness curve in several proportion to facilitate the analysis of cycle uneven quality;★Storing the test resulting in database to make it easy for user to carry out classified statistics and analysis with test result and enhance the quality control ability;★Statistic analyzing system can put out annals, seasonal report, monthly report, daily report of testing data for some material, and distribution diagram of index tendency;★Expert system (optional) can help user to analyze failures in the textile technology. It also can compare the yarn with USTER statistics.Technical specificationModelHY0133B/HMeasuring rangeYarn: 4tex-80ktexHairiness: 4tex-160texTesting speedyarn: 4, 8, 25, 50, 100, 200, 400m/minHairiness: 200,400m/minTesting time0.5-50min selectableTest lengthMax.10000mTest times1 ~ 24 tubes/groupCV% (U%) range0 ~ 99.99%Thin-30%, -40%, -50%, -60%Thick+35%, +50%, +70%, +100%Neps+140%, +200%, +280%, +400%CV length curveCutting length 0.01 ~ 1000mDR% range0 ~ 99.99% in 1m±5%Spectrogram range0.01 ~ 3011mSpectrogram channelStandard: 86Fine: 1723D Spectrogram1 ~ 12 pcs / screen, max. 24 pcsPower supplyAC220V±10% 50HzPower consumption≤600WWeight65kgOur CompanyPayment Payment term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContacting UsPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

---
